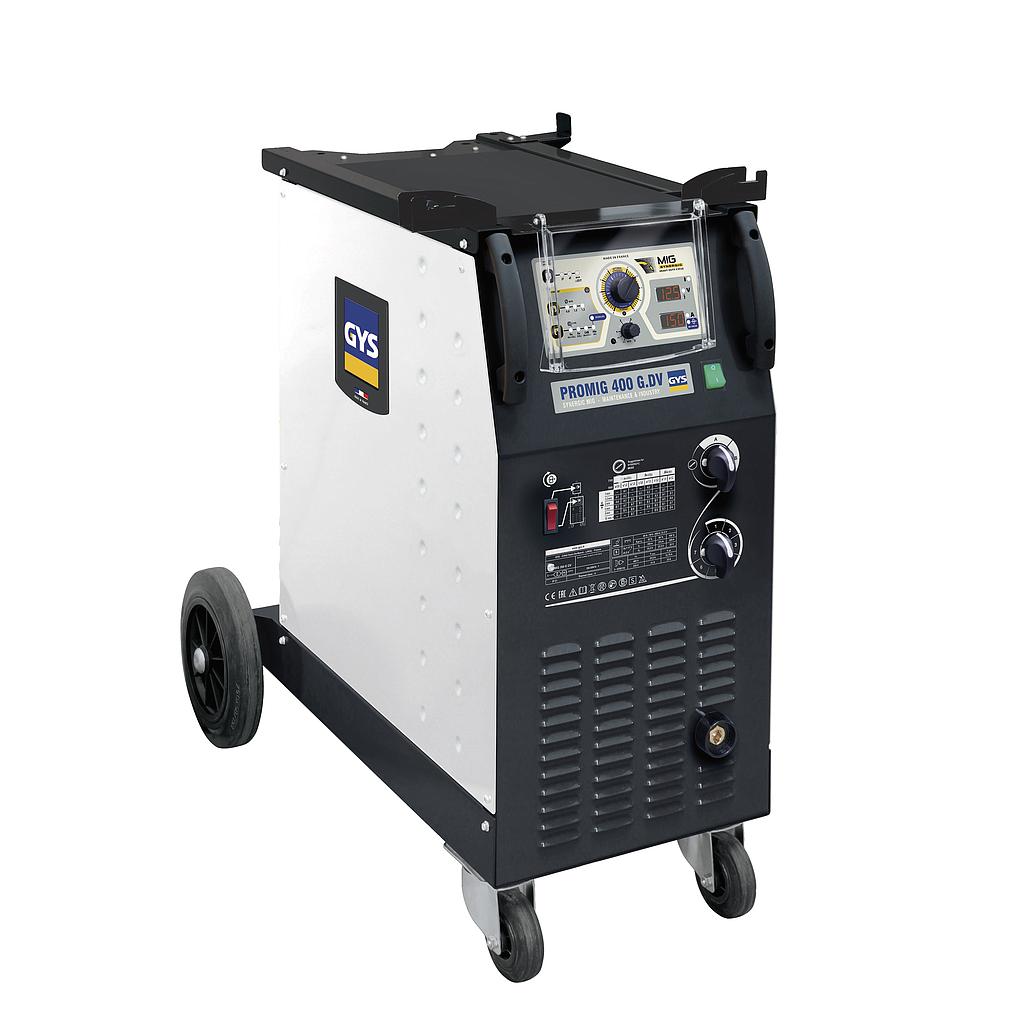

GYS PROMIG 400 G.DV MIG/MAG 焊接机 (3ph; 230/400V; 40-350A; no accessories)

3 Phase Synergic welding machine ideal for semi industrial work, maintenance and locksmith work. For use with separate wire feeder (TF 4R), the Trimig 400G is recommended for professional work up to a 1.2mm on steel, stainless-steel and aluminium Easy and fast set up with its synergic control.

TRIGGER SETTING

- 2T: 2 stroke welding

- 4T:4 stroke welding, to weld during a long period: without constantly pressing the trigger

- Spot: for plug welding

2 FUNCTIONS: MANUAL OR SYNERGIC

Synergic Mode. No need to adjust the wire speed Microprocessor controlled, the machine automatically selects the optimum welding parameters

Select:

-Wire Type

- Wire diameter

- Power: 2 switches = 14 positions

PROMIG 400 G.DV automatically adjusts

- Wire speed

- Pre-gas and post-gas

- Bumback

Manual mode: Manual setting of the wire speed

Selection of the wire speed driver: To switch the setting of the wire speed to or from separate wire feeder for a quick adjustment where required.

Specifications:

Power supply: 230 V/400 V, 3 ph, 50/60 Hz

Fuse: 25A (230V) / 16A (400V)

Rate current output: 40-350 A

Duty cycle (environment temp. at 40°C):

   350 A / 31.5 V @ 35%

   270 A / 27.5 V @ 60%

   220 A / 25 V @ 100%

Voltage positions switch: 14

No-load voltage: 17/41.5 V

Protection level: IP 21

Dimensions (L x w x h): 89 x 49 x 88 cm

Weight: 105kg

Standard: IEC 60974-1/10 A

Original equipment (roller): 1.0/1.2 - B (Steel, inox)

Choose optional accessories when ordering
