GYS PROMIG 400-4S DV WS MIG/MAG 焊接机 (230/400V, 3ph, 40-350 A)

The PROMIG 400-4S DV DW is a synergic three-phase MIG/MAG generator with liquid cooling. It is ideal for industrial production workshops working with steel, stainless steel and aluminium. Its intuitive interface and integrated cooling unit offer manufacturers maximum productivity.

MIG / MAG WELDING

- Steel and stainless steel wire: Ø 0.8 to 1.2 mm

- Aluminium wire: Ø 0.8 to 1.2 mm

3 WORKING MODES

- Choice of torch trigger modes: 2T or 4T.

- Tack option: SPOT.

MANUAL & SYNERGIC

Over 1000 preprogrammed parameters for best welding results.

- Synergic function: No need to adjust the wire speed.

Simply select the wire diameter, wire type and power.

The PROMIG generator determines for you:

• Optimal wire speed

• Post gas

• Burnback

- Manual function: Manual adjustment of the yarn speed and power

INTEGRATED WIRE FEEDER

• Compatible wire reels: Ø 200 / 300 mm.

• Powerful 4 roller motorized wire-feeder for an efficient wire feeding.

• EURO torch connector for quick assembly/disassembly.

MAXIMUM PRODUCTIVITY

• Compatible with air and water cooled torches.

• Displays current/voltage during and after welding (WPS/PQR).

• Support for gas cylinder up to 10 m³ (50l).

• Large reinforced wheels combining stability and maneuverability.

Specifications:

Welding current: 230 V/400 V, 3 ph, 50/60 Hz

Power supply: 40A (230V) / 25A (400V)

Welding current range: 40-350 A

Duty cycle (environment temp. at 40°C):

   350 A / 31.5 V @ 35%

   270 A / 27.5 V @ 60%

   220 A / 25 V @ 100%

Wire feed speed: 1 - 20 m/min- 4 rollers (2 motors)

Built-in cooling unit: 5.5 L

Supported wire reels: Ø200-300 mm

Wire diameter:

    Cored wire: -

    Steel, inox: 0.8 - 1.2 mm

    Aluminum: 1.0 - 1.2 mm

Voltage level: 14

No-load voltage: 17/41.5 V

Protection level: IP 21

Dimensions (L x w x h): 89 x 49 x 106 cm

Weight: 127 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 1.0/1.2 - B (Steel, inox)

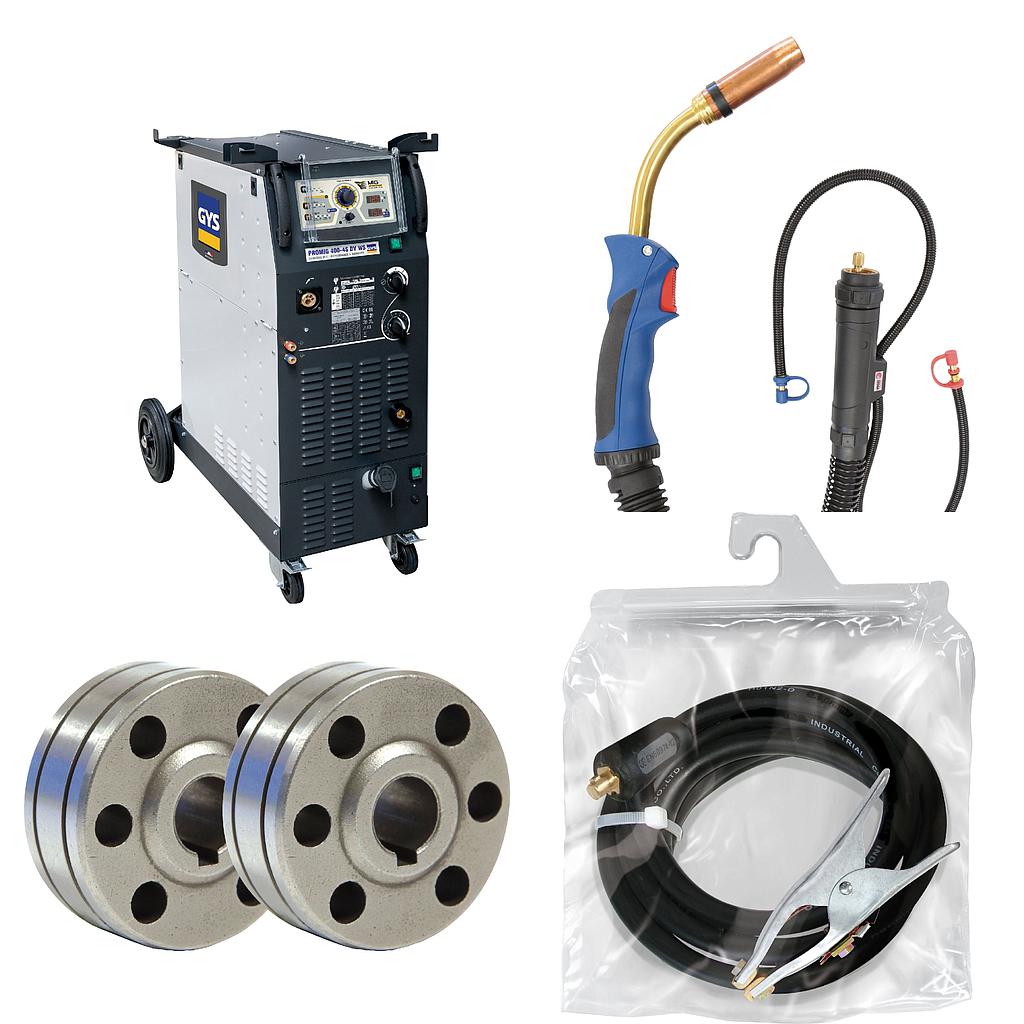

Included accessories:

Roller type B (x2) - Ø1.0 / 1.2 steel/ inox

Roller type B Ø1.0/1.2 - aluminum

Earth cable 400 A 4 m/50 mm²

Torch MIG/MAG GRIP- aluminum (500A- 3m): 040731
