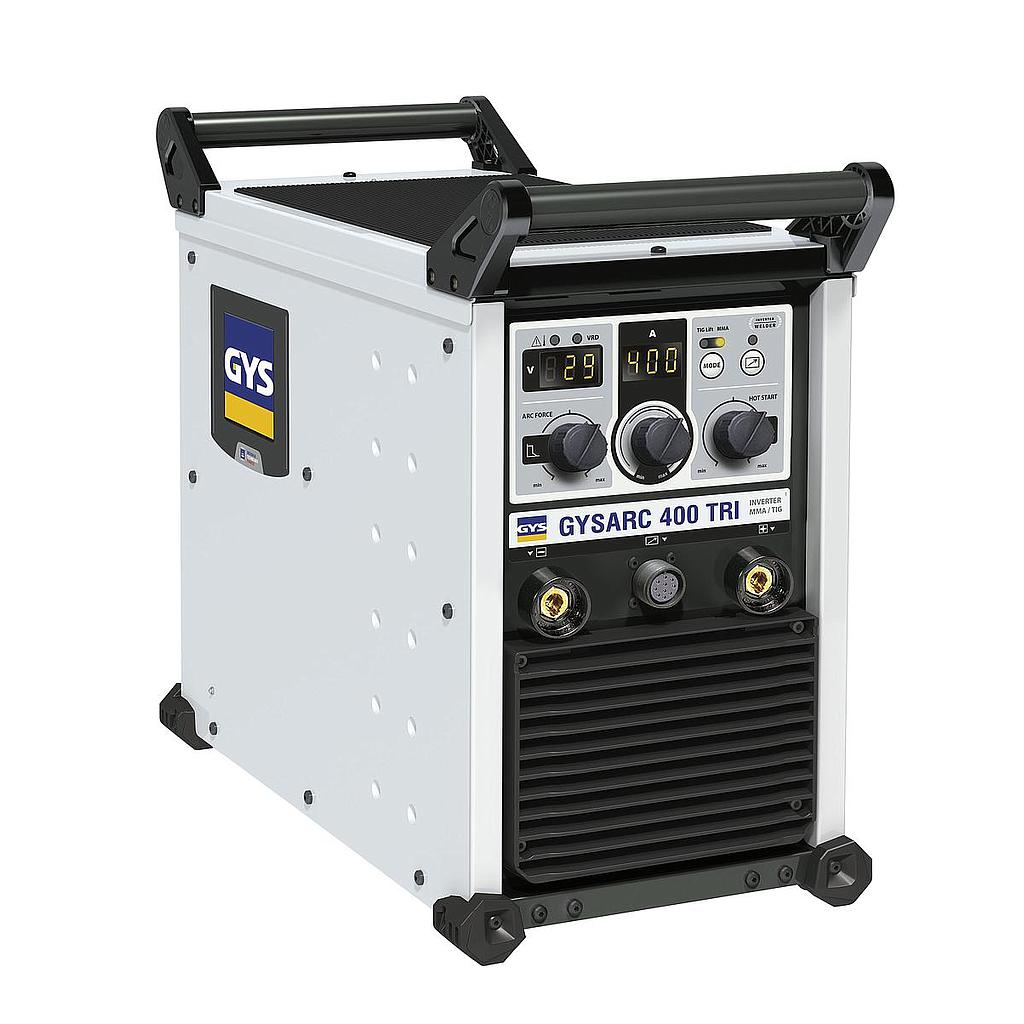

GYS GYSARC 400 TRI MMA/TIG DC 焊接机 (3ph; 400V; 20-400A; Without accessories)

With inverter technology, the GYSARC 400 TRI is a 3-phase MMA (SMAW) / TIG (GTAW) welding power source with exceptional welding performance. Featuring advanced electronics, this product guarantees maximum productivity, even in harsh environments. Its switchable Voltage Reduction Device (VRD) protects the welder in hazardous areas (mines, chemical and petrochemical installations, shipyards, etc.).

- MMA (SMAW) / TIG Lift (GTAW):

■ MMA (SMAW): rutile (6013), basic (7018) and cellulosic (6010) electrodes (up to Ø6 mm)

■ Arc gouging with carbon electrodes (up to Ø6.4 mm)

■ TIG (GTAW) process with LIFT arc ignition (Ø1.0 to 3.2 mm)

- WELDING AIDS:

■ Adjustable Hot Start for a better arc ignition

■ Adjustable Arc Force: temporary current increase when welding in difficult situations

■ Antisticking: reduce the risk of the electrode sticking to the metal when in contact

- HEAVY DUTY:

■ High duty cycle: 400A @ 60%

■ High no-load voltage (84V) for a good arc dynamic and to facilitate the arc ignition for cellulosic (6010) electrodes

■ Optimised cooling thanks to the air-tight ventilation corridor that helps insulating the electronic components from the dust.

- SIMPLE AND ACCESSIBLE

■ Current / voltage display when welding.

■ Intuitive display with knobs designed to be operated while wearing gloves.

■ Optional remote control (ref. 045675).

- WELDER’S PROTECTION:

■ VRD (Voltage Reduction Device) can be activated via an internal switch to lower no-load voltage down to 20V for safety reasons.

Specifications:

Power supply: 400V, three-phase, 50/60 Hz

Fuse: 32 A

Rated current output MMA/TIG: 20-400 A

Duty cycle (environment temperature at 40°C):

- MMA

   @ 60%: 400 A / 36 V

   @ 100%: 350 A / 34 V

- TIG

   @ 60%: 400 A / 26 V

   @ 100%: 350 A / 24 V

No-load voltage: 84 V (< 20 V VRD activated)

Protection class: IP 23

Dimensions: L x w x h: 58x52x30 cm

Weight: 37.5 kg

Standard: IEC 60974-1/10 A

Optional accessories:

MMA kit 500A - 4 m - 50 mm² - 047419

- RC-HA1 - 8 m Remote control- 045675

- Gouging torch 1 000A - 5.6 bars- 041516

- Adapter 5 m - 70 mm²- 040670

Gouging electrode Ø6.4 (x 50) - 086081

- Trolley JOB SITE XL- 039568

Choose optional accessories when ordering
