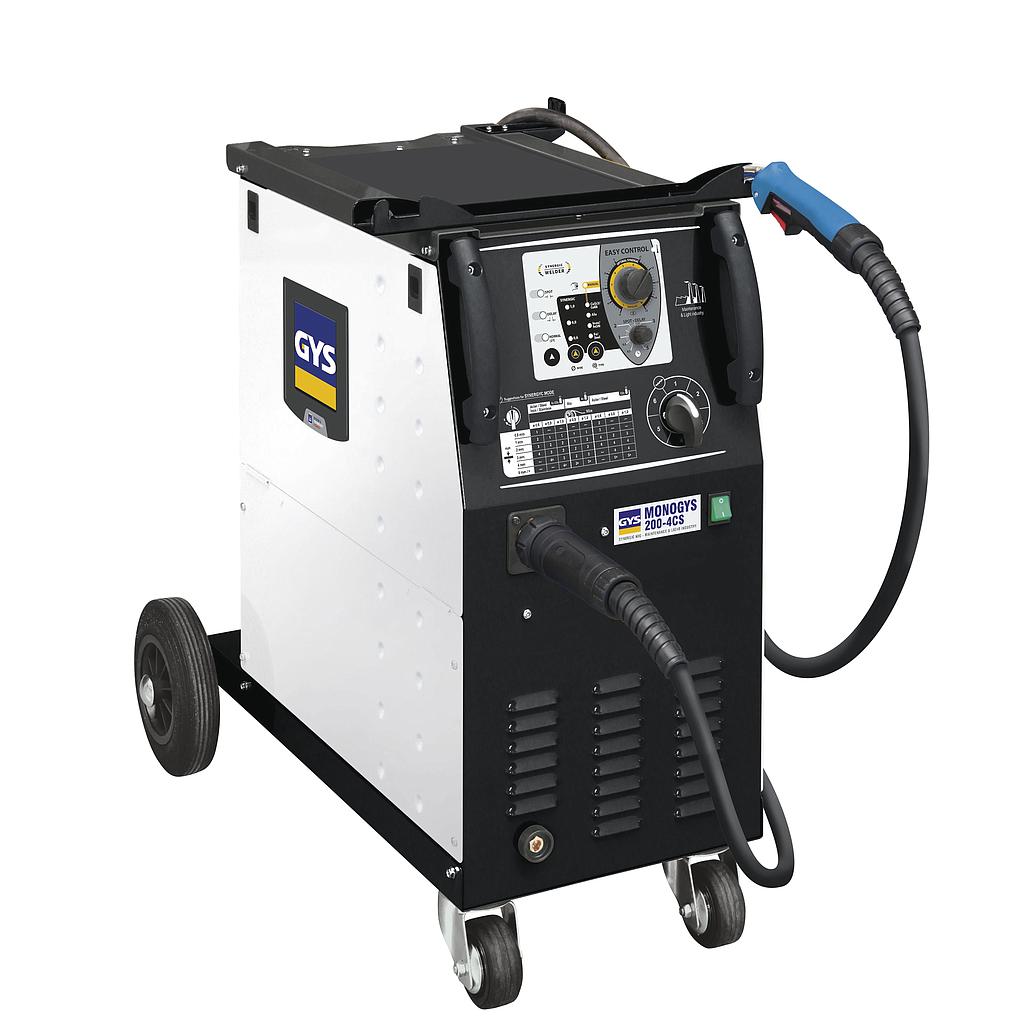

GYS MONOGYS 200-4CS MIG/MAG焊接机 (1ph; 230V; 25-200A)
制造商: GYS Model: MONOGYS 200-4CS P/N: 065949 来源: China 保障: 12 Month - 报价要求
- 联系
200 Amp, single phase MIG welder with 4 roll wire feed system and semi-synergic control panel. Controlled by microprocessor, set up is quick and easy with the machine controlling wire speed, this function avoids complex set up and ensures optimum welding performance.
PRODUCT
In « Synergic » mode, setting is fast and simple. The Micro processor controller will automatically set the optimum wire speed. This avoids complex set-up and ensures optimum welding parameters.
3 FUNCTIONS AVAILABLE
- Normal
- Spot: Spot welding with adjustable spot diameter
- Delay: « Chain spot » function (Spot welding with time adjustment between 2 spots).
SYNERGIC MODE FOR EASY AND QUICK SETTINGS
- With this function, the wire speed setting is Automatic.
Simply select:
• the wire type
• the wire ø
• the power
MONOGYS 200-4CS sets the optimum wire speed for you.
- Save the last settings.
Specifications:
Power supply: 230 V, 1 ph, 50/60 Hz
Fuse: 16 A
Rate current output: 25-200 A
Duty cycle (environment temp. at 40°C):
- Imax 200 A @ 15%
110 A / 19.5 V @ 60%
90 A / 18.5 V @ 100%
Motor speed: 1 - 15 m/min- 4 rollers (2 motors)
Supported wire reels: Ø200-300 mm
Wire diameter:
+ Steel, inox: 0.6 - 1 mm
+ Aluminum: 0.8 - 1 mm
+ CuSi / CuAl: 0.8 - 1 mm
Voltage level: 6
No-load voltage: 33.5 V
Protection level: IP 21
Dimensions (L x w x h): 74 x 63.5 x 33 cm
Weight: 60 kg
Standard: IEC 60974-1/5/10 A
Original equipment (roller): 0.8/1.0 - A (Steel, inox)
Included accessories: Torch TOPARC MIG 250A - 3 m + Earth clamp with cable 250 A - 2 m, 25 mm²
Optional accessories: Torch MB25 kit (250A) - 041233
