GYS MULTIWELD 320T-C PACK MMA, MIG/MAG 焊接机 (3ph; 400V; 320A MIG/MAG; 300A MMA)

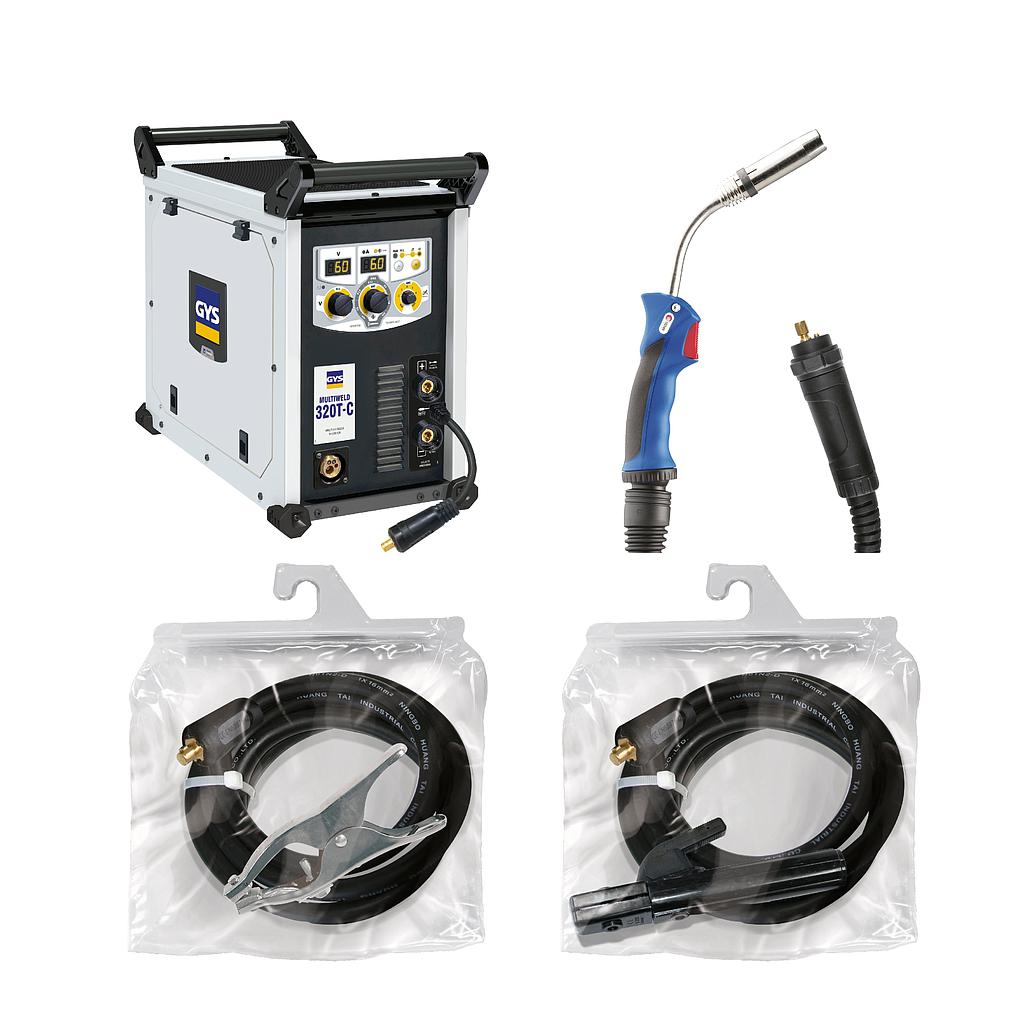

STANDARD DELIVERY:

1. MULTIWELD 320T-C

The MULTIWELD 320T-C is a compact, three-phase welding machine that combines MIG/MAG, flux-cored wire and MMA welding processes. Equipped with a precise and powerful four-roller wire-feed system, the MULTIWELD 320T- C can weld Ø 1.2 mm wire effortlessly. Its reinforced structure, with two handles for lifting and carrying, is perfectly suited for workshops and quick on-site repairs.

MULTI-PROCESS MACHINE

MIG/MAG welding:

- steel wire: Ø 0.6 - 1.2 mm

- stainless-steel wire: Ø 0.8 - 1.2 mm

- aluminium wire: Ø 0.8 and 1.0 mm

- flux-cored wire (polarity inversion): Ø 0.9 - 1.2 mm

MMA welding: basic and rutile electrodes (up to Ø 6 mm).

ADVANCED MIG/MAG SETTINGS

- Choice of trigger performance: 2T or 4T

- Welding support chart: a chart on the machine’s side helps the user adjust the tension and diameter of the filler wire according to the thickness of the material being welded.

INTUITIVE

- Display screen can be easily read, even in bright light.

- Easy to alter the settings using the machine’s simple user interface with accessible knobs and buttons suitable for gloved hands.

BUILT-IN WIRE-FEED REEL

- Compatible reels: Ø 200 / 300 mm.

- Powerful, four-roller, motorised wire-feed rollers for efficient unwinding.

- European torch connection for quick assembly/disassembly.

PURE CO2-GAS PREHEATING

- Pre-installed socket (36 V / 4.2 A) for heating gas in pure CO2 welding (heater not included).

- Compatible with US (type A) and EURO (types C/E/F) electrical sockets.

ROBUST

- IP 23 classification for outside use.

- Reinforced structure.

- 2 steel handles for easy manipulation.

Specifications:

Power supply: 400 V, 3 ph, 50/60 Hz

Fuse: 16 A

Normal current output (MIG/MAG): 40-320 A

Normal current output (MMA): 40-300 A

Duty cycle (environment temp. at 40°C):

   - MIG/MAG:

        Imax 320 A @ 20%

        @ 60%: 200 A / 24 V

        @ 100%: 160 A / 22 V

   - MMA:

        Imax 300 A @ 20%

        @ 60%: 180 A / 27.2 V

        @ 100%: 140 A / 25.6 V

Motor speed: 3 - 18 m/min, 4 rollers (2 motor)

Supported wire reels: Ø200-300 mm

Wire diameter:

            + Steel: 0.6 - 1.2 mm

            + Inox: 0.8 - 1.2 mm

            + Aluminum: 0.8 - 1 mm

            + Cored wire: 0.9 - 1.2 mm

No-load voltage: 64 V

Protection level: IP 23

Dimensions (L x w x h): 65 x 52 x 34 cm

Weight: 38 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 0.8/1.0 - B (steel, inox)

2. MIG Torch Grip 250A - 4 m

3. Electrode holder 4 m

4. Earth clamp 4 m
