GYS MULTIWELD 320T PACK MMA, MIG/MAG 焊接机 (3ph; 400V; 320A MIG/MAG; 300A MMA)

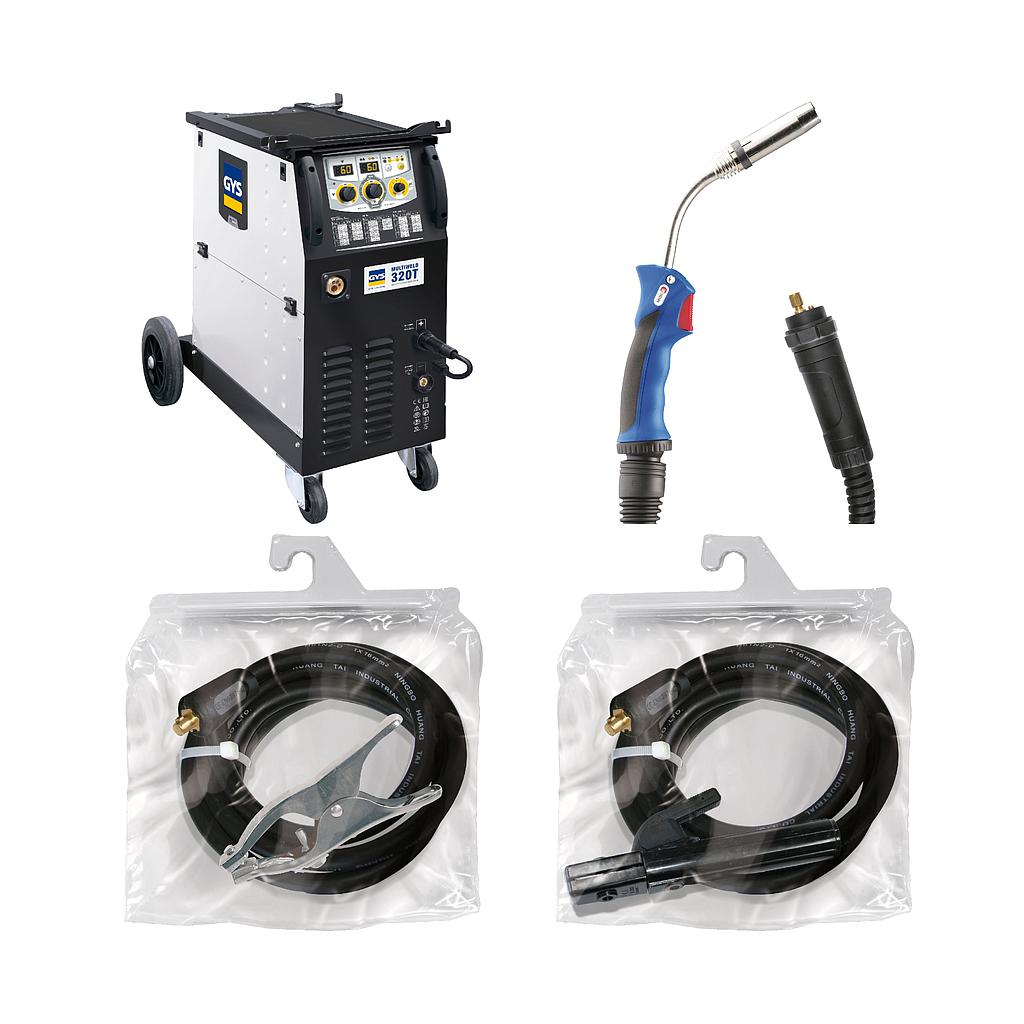

STANDARD DELIVERY:

1. MULTIWELD 320T

The MULTIWELD 320T is a semi automatic tri-phase welding machine, combining MIG/MAG, cored wire and MMA welding processes. Its intuitive interface integrates digital displays for easy and precise adjustment. Fitted with a powerful and precise 4 drive roll feeding system, the MULTIWELD 320T is perfect for welding Ø 1.2 mm wire without difficulty. Its welding performance is impeccable even when using aluminum.

MULTIPROCESS:

+ MIG/MAG welding :

   - Steel wire: Ø 0.6 to 1.2 mm

   - Stainless steel wire: Ø 0.8 to 1.2 mm

   - Aluminium wire: Ø 0.8 and 1.0 mm

   - Cored wire (reverse polarity): Ø 0.9 to 1.2 mm

+ MMA welding: basic and rutile electrodes (up to Ø 6 mm).

OPTIMISED MIG/MAG SETTINGS

+ Choice of the trigger mode: 2T or 4T.

Welding guide: tables assist the user to adjust and fine tune the voltage and the diameter of the filler wire according to the thickness of material being welded.

INTUITIVE

+ Display readable even in bright light.

+ Simple user interface with ergonomic controls allowing gloved use.

INTEGRATED WIRE FEEDER

+ Compatible with reels : Ø 200 / 300 mm

+ Wire feeder with 4 rollers for an efficient wire feeding.

+ EURO torch connector for quick assembly/disassembly.

PRE-HEATING, PURE CO2

+ Pre-installed socket (36 V - 4.2 A) for gas heater in pure CO2 welding (heater not included).

+ Compatible with US (type A) and EURO electrical sockets (type C/E/F).

STURDY

+ Reinforced structure.

+ Reinforced wheels for better stability and movement.

+ Support for gas cyliner up to 4 m³.

Specifications:

Power supply: 400 V, 3 ph, 50/60 Hz

Fuse: 16 A

Normal current output (MIG/MAG): 40-320 A

Normal current output (MMA): 40-300 A

Duty cycle (environment temp. at 40°C):

   - MIG/MAG:

        Imax 320 A @ 30%

        @ 60%: 240 A / 26 V

        @ 100%: 200 A / 24 V

   - MMA:

        Imax 300 A @ 30%

        @ 60%: 220 A / 28.8 V

        @ 100%: 180 A / 27.2 V

Motor speed: 3 - 18 m/min, 4 rollers (2 motor)

Supported wire reels: Ø200-300 mm

Wire diameter:

            + Steel: 0.6 - 1.2 mm

            + Inox: 0.8 - 1.2 mm

            + Aluminum: 0.8 - 1 mm

            + Cored wire: 0.9 - 1.2 mm

No-load voltage: 64 V

Protection level: IP 21

Dimensions (L x w x h): 77 x 79 x 47 cm

Weight: 44 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 0.8/1.0 - B (steel, inox)

2. MIG Torch Grip 250A - 4 m

3. Electrode holder 4 m

4. Earth clamp 4 m
