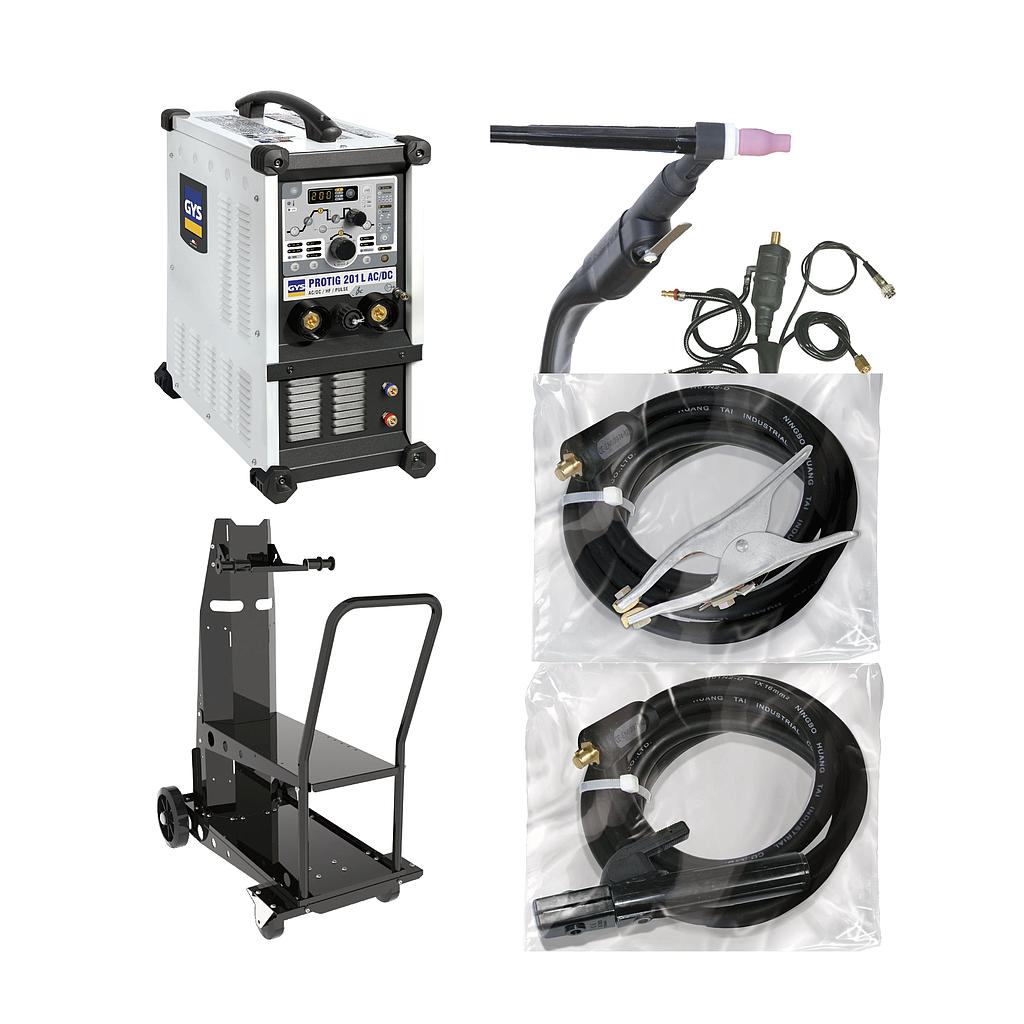

GYS PACK PROTIG 201L AC/DC L MMA 和 TIG AC/DC 焊接机 (1ph; 230V; 200A AC; 160A DC; Torch TIG SR20 L)

STANDARD DELIVERY:

1. PROTIG 201 AC/DC L

The PRO TIG 201L AC/DC is the professional TIG welding solution for welding all types of metal up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium). It ensures a very high level of precision in many areas such as fabrication, maintenance or piping. Equipped with a cooling unit, it allows the use of more ergonomic TIG torches

- 6 TIG AC/DC processes:

• Welding current : 10 to 200 A (TIG AC), 10 to 160 A (TIG DC)

• TIG DC - Standard : Ensures a quality weld on all ferrous materials such as steel, stainless steel but also copper and its alloys, titanium...

• TIG DC Pulse : Controls molten temperature, limits deformation and thus allows the assembly of thin sheets from 0.3 mm.

• TIG DC SPOT: Pre-assembles ferrous metal parts by tacking

• TIG AC - Easy : Makes the use of the welding machine easier thanks to predefined settings.

   The user only selects the diameter of his tungsten electrode on the interface.

• TIG AC - Standard : Designed for welding aluminium and its alloys (Al, AlSi, AlMg, AlMn...).

    Alternating current provides cleaning of the aluminium for a perfect weld.

• TIG AC - SPOT : Pre-assembles the aluminium parts by tacking.

- 2 modes of coated electrode welding

• Normal current output : from 10 to 160 A (MMA)

• MMA Standard : Accepts basic, rutile electrodes up to Ø 4 mm.

• MMA Pulse : Helps welding in a vertical upright position (nozzles/pipeline).

Specifications:

Power supply: 230 V, 1 ph, 50/60 Hz

Fuse: 13 A

Maximum welding current: 200 A (AC) 160 A (DC)

Normal current output (TIG AC): 10-200 A

Normal current output (TIG DC): 10-160 A

Normal current output (MMA): 10-160 A

Duty cycle (environment temperature at 40°C):

- TIG AC: 200 A @ 13%

      90 A / 13.6 V @ 60%

      80 A / 13.2 V @ 100%

- TIG DC: 160 A @ 25%

      100 A / 14 V @ 60%

      95 A / 13.8 V @ 100%

- MMA: 160 A @ 25%

      100 A / 24 V @ 60%

      95 A / 23.8 V @ 100%

Dimensions (L x w x h): 24x41x36 cm

Weight: 15 kg

Protection class IP21

Standard: IEC 60974-1/3/10 A

No-load voltage: 70V (< 30 V VRD activated)

Cooling power - 400 W

Maximum pressure - 0.6 MPa (87 Psi)

Capacity - 1.25 L (0.27 gal US)

2. Torch TIG lamella SR20 L - 8 m 046153

3. Earth clamp with cable 250 A 4 m / 25 mm² 043794

4. Electrode holder 4 m / 70 mm² 200 A - 4 m / 25 mm² 043855

5. Trolley 4m³ 015678
