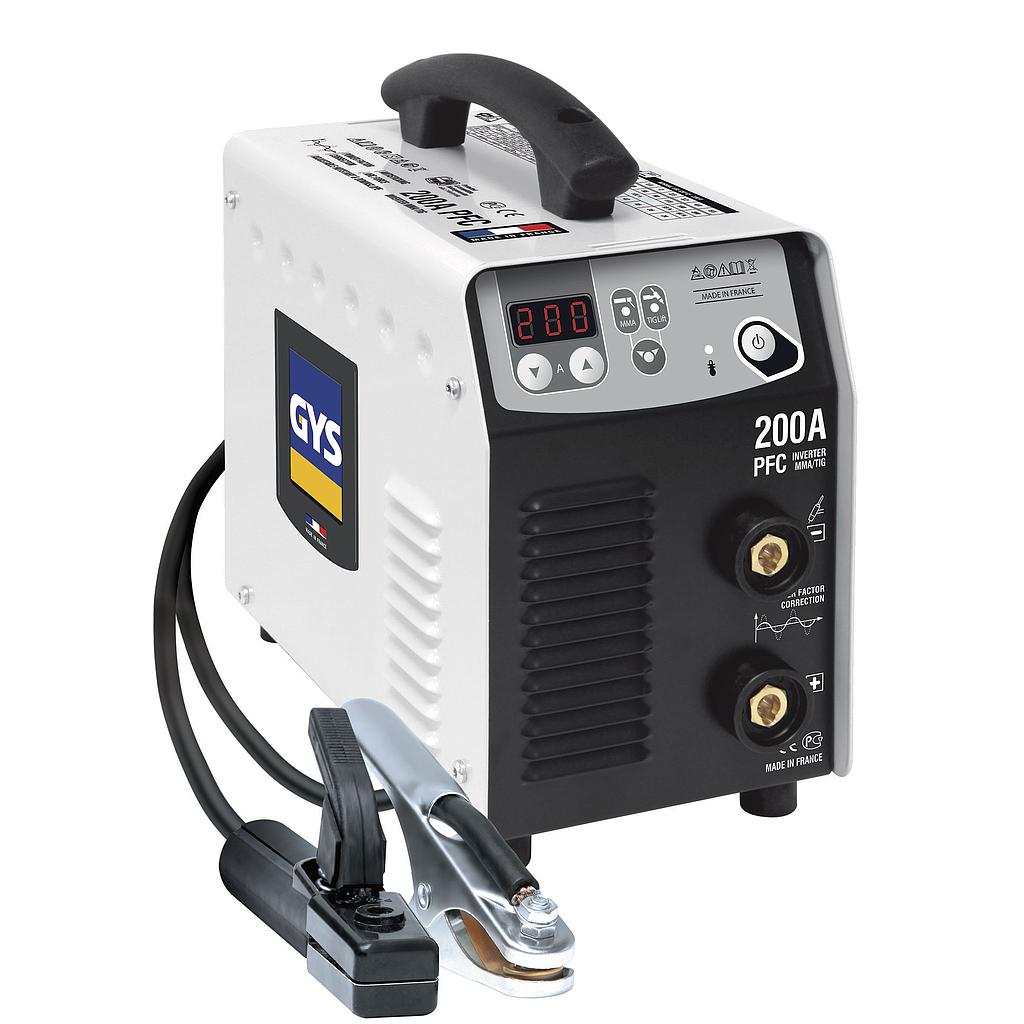

GYS PROGYS 200A PFC MMA 和 TIG DC 焊接机 (1ph; 230V; 10-200A)

The PROGYS 200A PFC is a versatile Inverter stick welding (MMA) and TIG machine, controlled by micro-processor with touchpad and digital screen. It is designed for professional use.

- Stick welding - MMA (200 A)

With its high duty cycle the PROGYS 200A PFC is suitable for intensive use with any type of electrode from Ø 1.6 to 5 mm : rutile, basic, steel, stainless steel and cast iron. Designed with Anti-Sticking, Hot start and adjustable Arc Force technology the machine is easy to use

and to achieve excellent welding results.

- TIG LIFT (200 A)

Strike without polluting the tungsten electrode. Automatic downslope with adjustable time for a better welding finish.

- PFC Technology:

PFC regulates and effectively use the supply current which enables the unit to operate on a single phase 16A 230V outlet, even intensive use, whereas 32A-230V may be requried for the same output without PFC. This machine is capable of being used with long extension leads (up to 100m).

- Duty cycle

Capable of welding 45 Ø3.2 mm electrodes in 1h. 100% duty cycle up to 120 A (at 20°).

- Handy: Lightweight (~6 kg) and compact

Specifications:

Power supply: 230 V, 1 ph, 50/60 Hz

Fuse: 16 A

Normal current output (MMA): 10-200 A

Normal current output (TIG): 10-200 A

Maximum welding current: 200 A

No-load voltage: 96 V (MMA) / 87 V (TIG)

Duty cycle (environment temperature at 40°C):

- MMA:

     200 A/28 V @ 20%

     120 A/24.8 V @ 60%

     90 A/23.6 V @ 100%

- TIG:

     200 A/18 V @ 27%

     145 A/15.8 V @ 60%

     115 A/14.7 V @ 100%

Dimensions (L x w x h): 27x21x14 cm

Weight: 5.5 kg

Protection class: IP21

Standard: IEC 60974-1/10 A

Included accessories:

- Plastic case

- Earth clamp (1.60 m - 25 mm²)

- Electrode holder (2 m - 25 mm²)

Details

Datasheet


Manual
