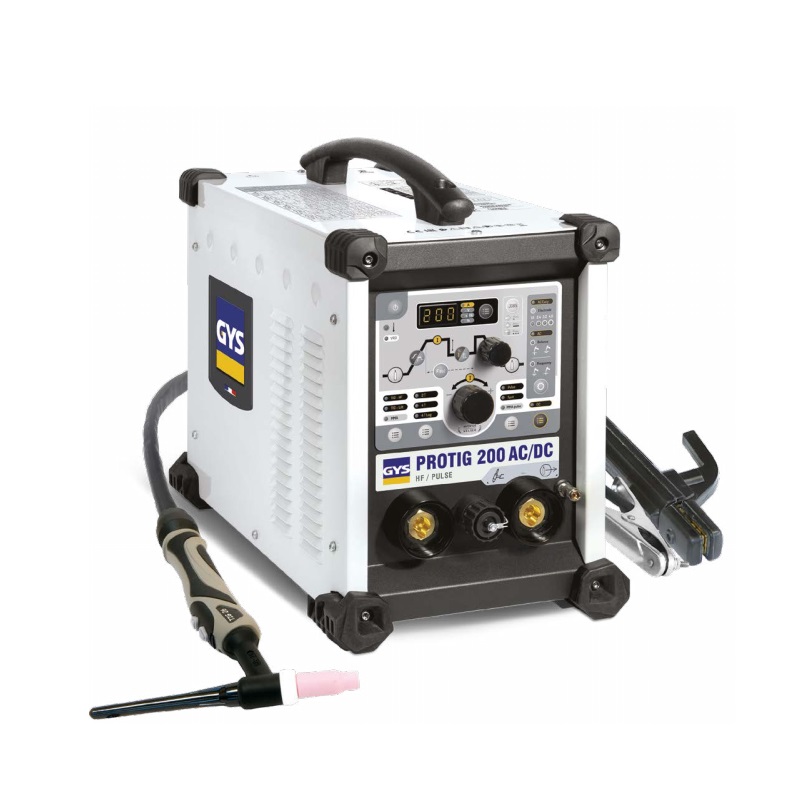

GYS PROTIG 200 AC/DC MMA, MMA脉冲和TIG交直流焊接机 (1ph; 230V; 10-200A AC; 10-160A DC)

Specifications:

Power supply: 230 V, 1 ph, 50/60 Hz

Fuse: 16 A

Maximum welding current: 200 A (AC); 160 A (DC)

Normal current output (TIG AC): 10-200 A

Normal current output (TIG DC): 10-160 A

Normal current output (MMA): 10-160 A

Duty cycle (environment temperature at 40°C):

- TIG AC:

      200 A/18 V @ 20%

      115 A/16.4 V @ 60%

      90 A/13.6 V @ 100%

- TIG DC:

      160 A/16.4 V @ 20%

      90 A/13.6 V @ 60%

      70 A/12.8 V @ 100%

- MMA:

      160 A/26.4 V @ 20%

      90 A/23.6 V @ 60%

      70 A/22.8 V @ 100%

Dimensions (L x w x h): 24x43x35 cm

Weight: 12.5 kg

Protection class: IP21

Standard: IEC 60974-1/3/10 A

No-load voltage: 64 V (< 30 V VRD activated)

Included accessories:

TIG Double Button Torch TIG26DB - 4 m + Consumables box, Electrode holder 200 A - 2 m + Earth cable 200 A - 2 m, 25 mm²
