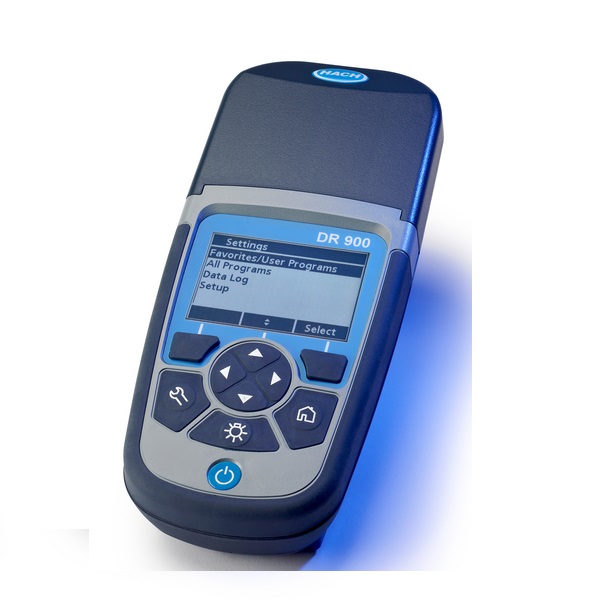

HACH 9385100 多参数便携式比色仪 (0 - 2 Abs)

Battery Life: 6 months (typical) @ 5 readings a day / 5 days / week without backlight**

** Backlight usage will decrease battery life.

Battery Requirements: 4, AA size alkali cells

Data Logger: 500 measured values (Result, Date, Time, Sample ID, User ID)

Detector: Silicon photodiode

Dimensions (H x W x D): 231 mm x 96 mm x 48 mm

Display: Graphical display 240 x 160 pixels (Backlit)

Enclosure Rating: IP67 (vial cover closed)

Includes: DR 900 Colorimeter, two 1-inch glass sample cells marked at 10, 20 and 25 mL, two 1 cm plastic sample cells, 1 x 16-mm COD/Test 'N Tube™ adapter, 4 AA alkaline batteries, printed multilingual instrument manual, USB Mini to USB Cable, European CE mark.

Interface: USB type Mini IP67

Manual Languages: English, French, German, Italian, Spanish, Portuguese, Bulgarian, Chinese, Czech, Danish, Dutch, Finnish, Greek, Hungarian, Japanese, Korean, Polish, Romanian, Russian, Slovenian, Swedish, Turkish

Operating Conditions: 10 - 40 °C (50 - 104 °F), max. 80 % relative humidity (non- condensing)

Operating Humidity: Max 90 % relative humidity (non-condensing)

Operating Mode: Transmittance (%), Absorbance and Concentration

Operating Temperature: 10 - 40 °C

Optical System: 0 / 180 deg transmittance

Photometric Accuracy: ± 0.03 Abs

Photometric Linearity: ± 0.002 Abs (0 - 1 Abs)

Photometric Measuring Range: 0 - 2 Abs

Power Supply: 4 x AA size alkaline cells

4x NiMH rechargeable Battery* (*External charger required)

Reproducibility: ± 0.005 Abs (0 - 1 A)

Sample Cell Compatibility: 1 inch round or 16 mm round (with adapter)

Source Lamp: Light Emitting Diode (LED)

Spectral Bandwidth: 15 nm filter bandwidth

Storage Conditions: -30 to 60 °C (-30 - 140 °F), max. 80 % relative humidity (non-condensing)

Supported Chemistry: Hach tests

Temperature Range: 0 - 50 °C (32 - 122 °F)

User Interface Languages: English, French, German, Italian, Spanish, Portuguese, Bulgarian, Chinese, Czech, Danish, Dutch, Finnish, Greek, Hungarian, Japanese, Korean, Polish, Romanian, Russian, Slovenian, Swedish, Turkish

User Programs : Custom programming 10

Warranty: 12 months

Wavelength Accuracy: ± 1 nm (fixed, varies with model)

Wavelength Calibration: N/A

Wavelength Range: 420 nm, 520 nm, 560 nm, 610 nm

Wavelength Selection: Automatic

Weight: 0.6 kg with battery

What's included?: Includes: DR900 instrument, USB cable with mini-USB connector, 4-AA alkaline batteries, 2 glass sample cells 1-inch (25 mm) round with 10, 20, 25-mL marks, 2 sample cells 1 cm/10 mL, sample cell adapter and multilingual user manual
