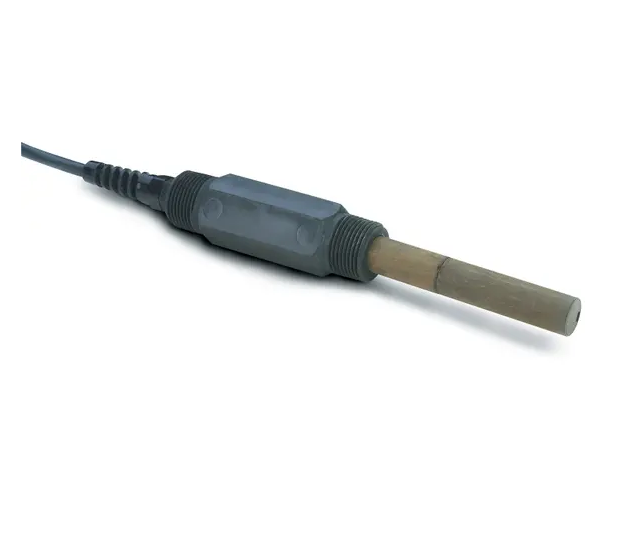

HACH D3433E8 数字接触式电导率传感器 (0 - 200000 µS/cm)

Accuracy: ± 2 % of reading above 200 µS/cm

Cable Length: 6 m

Cable Length: Standard Probe Cable Length (integral)Digital Probe: 7 m

Cell Constant k: 10 cm-1

Digital Gateway: External Digital Gateway

Electrode Material: Graphite

Flow: 0 - 3 m/s (0–10 ft./s), maximum, fully immersed

Immersion Depth 2: 33 mm Tee mount

Installation Kit: 3/4" NPT

Installation Requirement: PPS sensor body

Installation style: General purpose

Operating Temperature Range: -20 - 200 °C

Pressure Range: 0 - 300 psi (20.7 BAR)

Range: 0 - 200000 µS/cm

Repeatability: 0.005

Sensitivity: 0.005

Sensor Immersion Depth: pipe mount

Sensor Thread: 0.75"

Sensor Type: Digital

Special Notes: Delivery includes AD 3400 Digital Gateway, analog 3433E8A sensor with 6 m fixed cable and 1 m digital extension cable

Temperature Sensor: Pt 1000 RTD

Transmission Distance: 100 m

Transmission Distance: 1000 m

What's included?: Includes: sensor with cable, digital gateway, extension cable and manual
