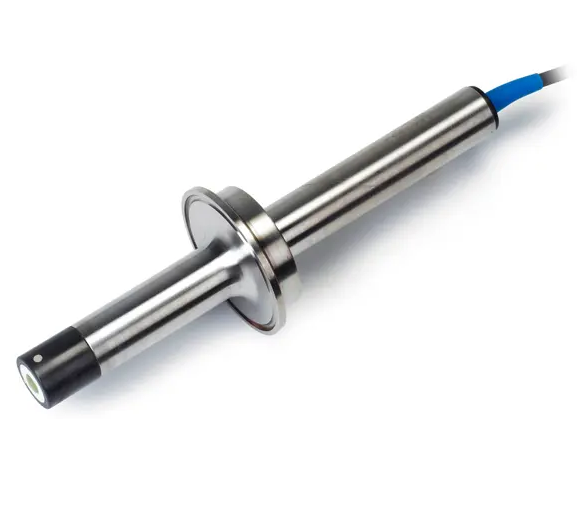

HACH DPC3K2A 数字组合pH/ORP传感器 (0 ​​- 14 pH)

Accuracy: 0.1 pH under reference conditions

Body Material: 316 SS/PVDF

Electrode Material: General Purpose Glass pH Electrode

Material: 316SS/PVDF

Operating Temperature Range: 0 - 105 °C

Pressure Range: 0 - 6.9 bar at 100ºC (0 - 100 psig at 212ºF)

Range: Combination pH Sensors 0 - 14 pH

Sensor Cable: Integral coaxial cable (plus two conductors for temperature compensator option); 4.5 m (15 ft.) long

Sensor Thread: 0.75"

Specifications: Most pH applications fall in the 2.5-12.5 pH range. General purpose pH glass electrodes perform well in this range. Some industrial applications require accurate measurements and control at pH values below 2 or above 12. Consult Hach Technical Support for details on these applications.

Temperature Compensation: Pt 1000 ohm RTD

Transmission Distance: Signal Transmission Distance 1000 m (3280 ft.) when used with the Hach Digital Gateway, Termination Box, and sc100 Controller.

Wetted Materials: 316SS, PVDF, PTFE double junction, glass electrode, FKM/FPM O-rings

What's included?: Includes: sensor with 15 ft cable, digital gateway, 3 ft digital extension cable and manual
