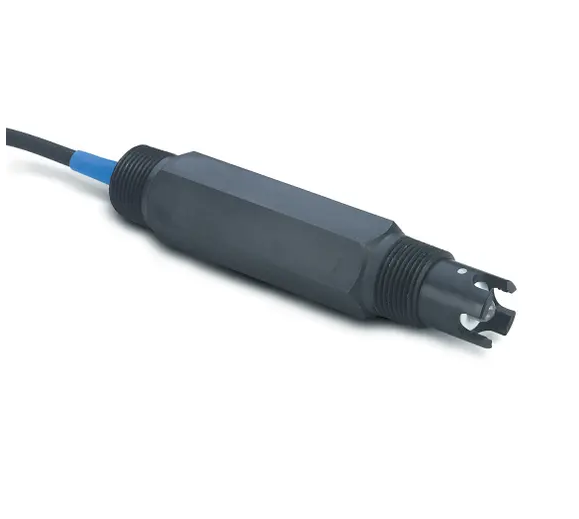

HACH DRC1R5N 数字组合pH/ORP传感器 (-2000 - 2000 mV)

Accuracy: ± 20 mV Limited to calibration solution accuracy

Body Material: PPS

Cable Length: 5.5 m

Electrode Material: Platinum Electrode

Flow: 0 - 2 m/s

Material: PPS

Operating Temperature Range: 0 - 105 °C

Pressure Range: 0 - 6.9 bar at 100ºC (0 - 100 psig at 212ºF)

Range: -2000 - 2000 mV

Sensor Cable: Integral coaxial cable (plus two conductors for temperature compensator option); 4.5 m (15 ft.) long

Sensor Thread: 0.75"

Special Notes: Delivery includes RC1R5N analog ORP sensor, AD 1200 Digital Gateway and 1 m digital extension cable

Specifications: Most pH applications fall in the 2.5-12.5 pH range. General purpose pH glass electrodes perform well in this range. Some industrial applications require accurate measurements and control at pH values below 2 or above 12. Consult Hach Technical Support for details on these applications.

Temperature Compensation: None

Transmission Distance: Signal Transmission Distance 1000 m (3280 ft.) when used with the Hach Digital Gateway, Termination Box, and sc100 Controller.

Wetted Materials: PPS, PTFE double junction, glass with platinum electrode, FKM/FPM O-rings

What's included?: Includes: sensor with 15 ft cable, digital gateway, 3 ft digital extension cable and manual
