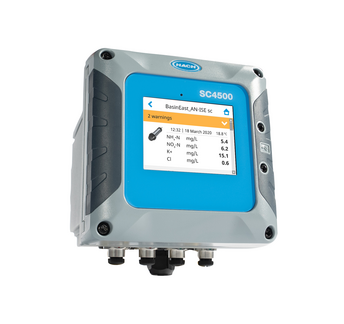

HACH LXV525.99A11211 数字控制器 (1 pH/ORP)

Altitude: 3000 m (9842 ft) maximum

Analog Output Functional Mode: Linear, PID

Classification: 1098396

Communication (optional):

+ Analog: Five 0-20 mA or 4-20 mA analog outputs on each analog output module; Up to two analog Input modules (0-20 mA or 4-20 mA). Each input module replaces a digital sensor input.

+ Digital: Profibus DPV1 module; Modbus TCP; Profinet IO module; Ethernet IP module

Compatible Network Technologies: GSM 3G/4G (e.g. AT&T, T-Mobile, Rogers, Vodafone etc.); CDMA (e.g. Verizon)

Compliance Certifications: CE. ETL certified to UL and CSA safety standards (with all sensor types), FCC, ISED, KC, RCM, EAC, UKCA, SABS, C م (Morocco)

Conduit Openings: ½" NPT conduit

Description: Microprocessor-controlled and menu-driven controller that operates the sensor

Dimensions: ½ DIN - 144 x 144 x 192 mm (5.7 x 5.7 x 7.6 in.)

Display: 3.5-inch TFT colour display with capacitive touchpad

Enclosure Rating: UL50E type 4X, IEC/EN 60529–IP 66, NEMA 250 type 4X; Metal enclosure with a corrosion-resistant finish

Indoor/Outdoor: Outdoor installation in direct sunlight or UV radiation requires UV protection screen and/or sunroof

Installation Category: Category II

Material Enclosures: Polycarbonate, aluminum (powder coated), stainless steel

Measurements: Two device digital SC connectors

Mounting: Wall, Pole, or Panel Mounting

Network Connectivity: LAN: Two Ethernet connectors (10/100 Mbps); Cellular: External 4G; Wi-Fi

Operating Temperature Range: -20 to 60 °C

Outputs: 5x mA Output

Pollution Degree: 4

Power Requirements (Voltage): 100-240 VAC ±10%, 50/60 Hz; 1 A

Power Supply: Without power cord

Protection Class: I, connected to protective earth

Relays: Two relays (SPDT);

Sensor Input #1: Analog Conductivity

Sensor Input #2: Analog pH/ORP

Software available: Non-Claros + Embedded Prognosys

Storage Conditions: -20 - 70 °C (-4 - 158 °F), 0 - 95% relative humidity, non-condensing

USB Port: Used for data download and software upload. The controller records approximately 20,000 data points for each connected sensor.

Weight: 3.7 lb (controller only, w/o modules)

What's included?: SC4500 Controller, Claros-enabled, with EU plug; includes mounting hardware
