HAIDA HD-513 纸板边压环压强度测试仪(200kg,1 / 250.000)

The main technical parameters:
Capacity (Optional): 10, 20, 50, 100, 200 kg
Resolution: 1/250,000
Precision: < 0.25%
Operation Mode: Computer
Display Mode: LCD
Platen: 100×100 mm or depending on the diameter of the flat crush sample
Compressed Space: 500 mm
Platen Parallelism: ± 0.05 mm
Ring Crush Sample: 152×12.7 mm
Edge Crush Sample: 25×100 mm
Test Speed: 12.7 mm/min
Dimension (L×W×H): 790×510×1060 mm
Weight: Approx. 51 kg
Power: AC220V, 1.5A

Detail

Specifications
1.2 years warranty
2.multi-functional equipment
3.paper ,corrugated box
4.with stock

Introduction:

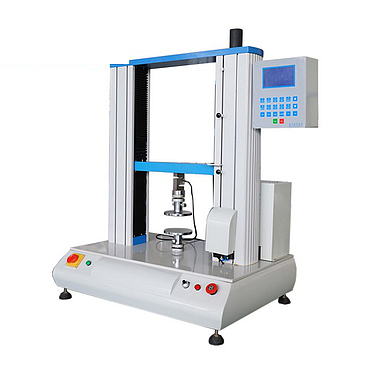

Ring Crush Tester And Edge Compressive Testing Machine can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.
