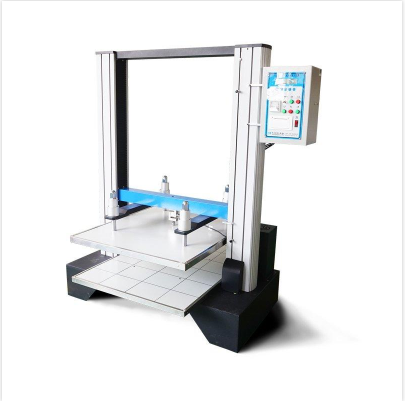

HAIDA HD-A501 纸箱压缩测试仪

Specifications:

ItemDescription
Max. Force1000 kg (10KN)
Load cell1 load cell
Control systemMicrocomputer control, button type
MotorAC motor, guild rod
Force readingkgf, Ibf, N etc
Load cell Resolution1/100,000
Load Precisionwithin ±0.5%
Parallelism of PlatensParallel within ±5mm
Effective test area600×800×600mm
Test speed10 ±3mm/min
Report outputMini-printer, thermal printing
Data displayLoad, displacement, speed
Safety featuresE-Stop
Over-load protection
Upper and lower limit switches

Detail

Datasheet

1.About the machine:
Paper Carton Compression Testing Instrument is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

Applications
Maximum load: test the maximum load of various corrugated cartons and beehive crates
Stacking test: stack test of various corrugated cartons and beehive crates

2.Design criteria: TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4

3.Features
_ Carton Box Compression Testing Equipment Using a single-screen operation; do not need to switch the screen;
_ With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
_ Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
_ The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
_ Choosing translational, comparative mode at the same time to make a number of curve data comparison;
_ With a variety of measurement units, Measure In Imperial & Metric are switchable;
_ With self-return & auto-correction function;
_ With automatic magnification function, in order to achieve the most appropriate size of the graphics;
_ With the user-defined Test methods; with experimental data analysis function;
_ Paper Carton Compression Testing Instrument can do test of compression, bending, pressure holding & fatigue.
_ With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
