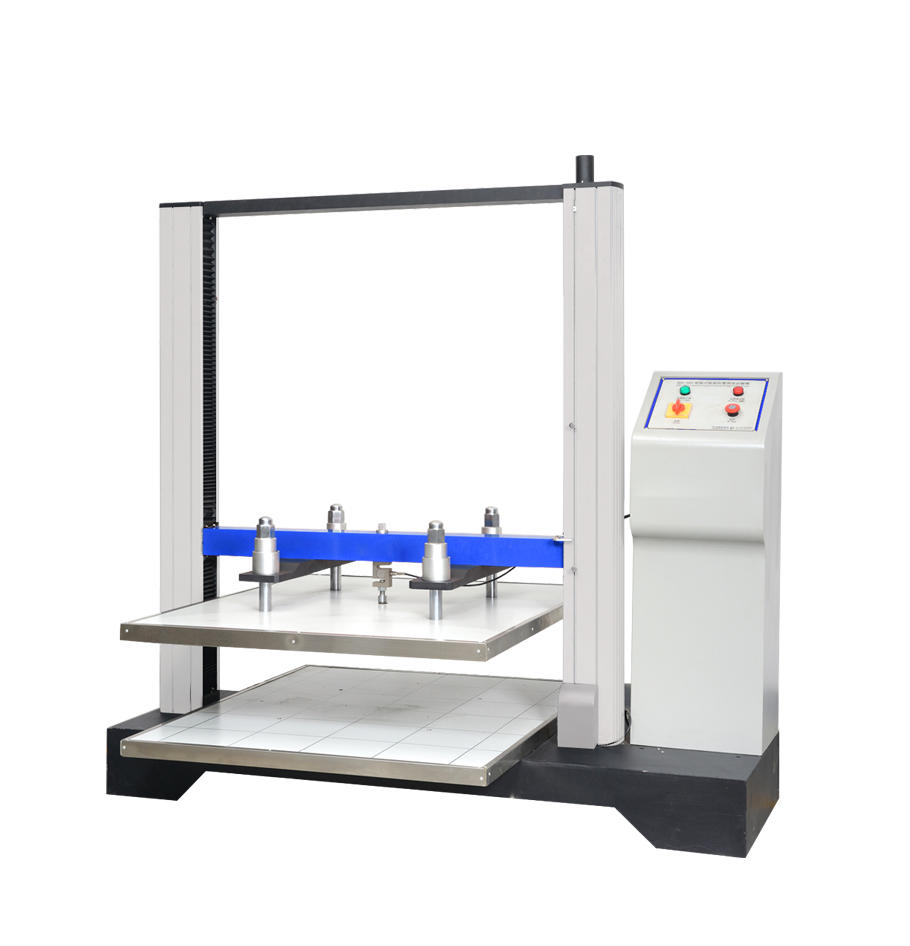

HAIDA HD-A502 纸箱堆码试验机

The main technical parameters
Max. Force: 2000 kg (20KN)
Load cell: 1 load cell for highest accuracy
Control system: Windows 7, RS-232 interface
Motor: Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading: kgf, Ibf, N, KN, T etc
Load cell Resolution: 1/250,000
Load Precision: within ±0.25%
Parallelism of Platens: Parallel within ±2.5mm
Effective test area: 1000×1200×1000mm
Test speed: 10 ±3mm/min (0.01~200mm/min adjustable)
Software: TM 2101
Data display: Load, displacement, speed, loading rate and elapsed time
Safety features: E-Stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat

Detail

Specifcations
Corrugated Box Compression Tester
1.AC frequency conversion motor ( Taiwan)
2.For box compression testing .
3.Carton test

The usage:
Corrugated Box Compression Tester is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

Operating modei
1. The compressive strength test for a variety of corrugated boxes, packing boxes and other pieces of honeycomb panels crush most vigorously when
2. stacking strength test for a variety of corrugated boxes, packing boxes and other pieces of honeycomb panels of stacking test
3. Pressure test standards for a variety of corrugated boxes, packing boxes and other pieces of honeycomb panels compliance testing

Standards:
ISO2872, ISO2874 and GB4857.4.

Features
1. Using a single-screen operation; do not need to switch the screen;
2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.
11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
