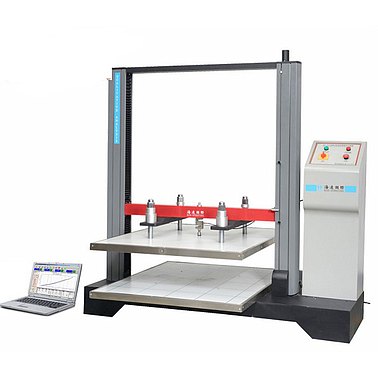

HAIDA HD-A502S-1500 纸板及纸箱抗压试验机(5T; 1 / 250,000)

Specifications
Capacity (optional): 5T
Unit (switchable): Kg, Lb, N
Load Resolution: 1/250,000
Load Accuracy: ≤0.5%
Test Space (L×W×H): 1300×1500×1200mm
Speed of Compression: 10 ± 3 mm/min
Operation Mode: PC
Report Items: Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure: Panasonic servo Motor (Japan) ; Imported ball screw rod
Dimension (L×W×H): 2000×1500×2030mm
Weight: Approx. 1340kg
Power: 1ø, 220v/ 50Hz
Safety Devices: Overload protection, overvoltage protection & limited position protection device
Standard: TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

Details

Specifications
1.Motor:Import servo motor
2.Control system:Computer control

1/ The Application:
Container Compressive Strength Tester used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Container Compressive Strength Tester's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

2/The Features:
Concrete Compressive Strength Tester Price
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. Container Compressive Strength Tester can do test of compression, bending, pressure holding & fatigue.
11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
