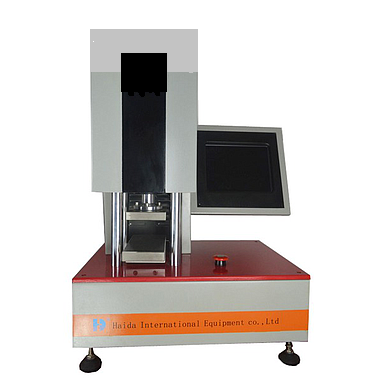

HAIDA HD-A504-A 全自动破裂强度试验机
制造商: HAIDA Model: HD-A504-A 来源: China 保障: 12 Month - 报价要求
- 报价要求
- 联系
The parameters:
Capacity (Optional): High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit (sitchable): Kpa, psi, kg/cm^2
Accuracy: ± 0.5%
Pressure Range: 250~5600kpa
Speed of Compression: High Pressure 170± 10ml/min
Specimen Clamping Force: >690kpa
Oil: 85% Glycerin; 15% Distilled Water
Sensing method: Pressure Transmitter
Indicating Method: Digital
Display: LCD
Material of the Ring: Stainless Steel SUS304
Opening in Upper Clamp: 31.5 ± 0.05 mm Diameter
Opening in Lower Clamp: 31.5 ± 0.05 mm Diameter
Motor: Anti-vibration Motor 1/4 HP
Operation Method: Semi-automatic
Dimension (L×W×H): 430×530×520 mm
Weight: Approx. 64 kg
Power: 1 , AC220± 10%, 50 Hz
Power Capacity: 120W
Standard Configuration: Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
Optional Configuration: Printer
Standard: JIS-L1004, L1018, L1031, K6328, P8131, P8112, ASTM-D2210; TAPPIT403TS-63, ISO2759-2001; GB/T1539
Specifications
1.High quality with reasonable price
2.One year free after-sale service
3.Up to TAPPI-T804,AS
The product Description:
The bursting strength tester is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The GT-7013-ADP type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
