Operating Method: Microcomputer Control
Specimen Size: Minimum Size: 230×50 mm
Friction Speed: 43 times/min ( 21,43,85, 106 times/min, adjustable)
Friction Load: 908g ( 2LB), 1810g (4 LB)
Friction Stroke: 60 mm
Friction Area: 50×100 mm
frequence Setting: 0~9999 times, auto-shutdown
Outside Dimension (L×W×H): 330×330×410 mm
Weight: 35 Kg
Power: AC220V, 60W
Design Criteria: JIS-507-1, TAPPI-UM486, GB7706, ASTM D5264
1.Dry abration,wet abrasion,Decolor change and paper fuzz test
2.surface abration tester

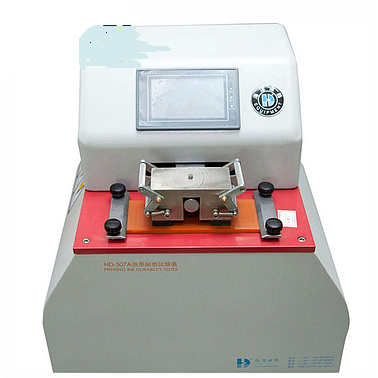

Paper Ink Rub Resistance Machine is applicable to testing ink layer of materials like labels, folding cartons, corrugated boxes, etc.
Paper Ink Rub Resistance Machine can do dry or wet rubbing test, discoloration test, paper fuzzy test, and special friction test. It can help users to analyze the reason of lower abrasion assistance, ink layer falling-off, lower printable of PS board, and adhesion of coating layers of other products.
