HAIDA HD-A519-1 MIT耐折强度试验仪

The parameters
sample: 15×(150~200)mm
counter: LCD,0~999,999
Outside Dimension (L×W×H): 450×300×580mm
Weight: 45 kg
power: AC220V,2.6A
Design criteria: TAPPI-T423PM,ASTM-D2176,JIS-P8115,GB/T2679-5


1.Calculate the test value automatically
2.Flex machine

The Usage:

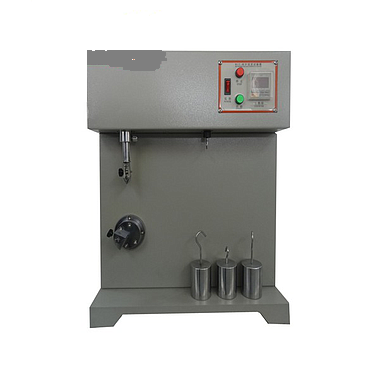

MIT Paper Folding Resistance Testing Machine is used to test the folding resistance strength of paper and cardboard , the method is to fasten the two ends of specimen on the machine , make the specimen bear a certain extent stretching force by exerting influence on the lower fixture with the needed load, the lower fixture will bend the specimen in vertical condition from side to side , the bending angle is 135 degree, and the test value will be calculated automatically when the specimen is broken .
