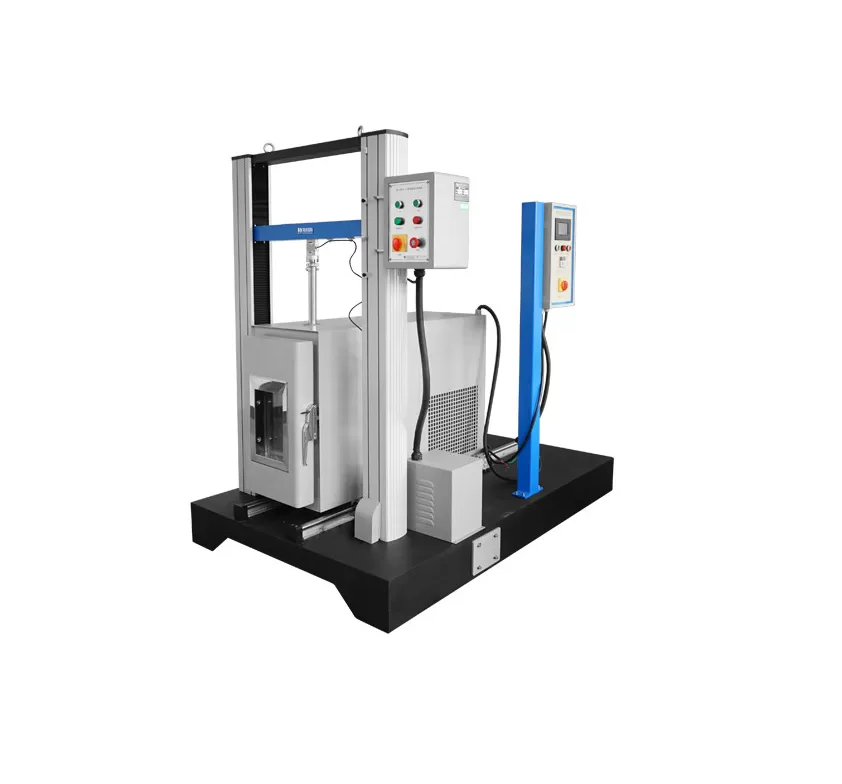

HAIDA HD-B607-S 金属拉力机 (2000kg)

Tensile strength tester

Capacity (optional): 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000kg

Unit (Switchable): G, KG, N, KN, LB

Load Resolution: 1/100,000

Load Accuracy: < ± 0.5%

Stroke (exclude the grips): 400   500   600 mm (can be adjusted  higher by requirements)

Test speed: 0.1~500 mm/min  Selectable

Effective Width: 400 mm

Operation Mode: Controlled by PC

Weight (exclude the grips): 130 Kg

Display: PC  (can be programmed any of the customer's data )

Motor: AC Servo Motor

Dimension(L×W×H)-Main Unit: 1200×600×1500cm

Dimension of the testing space: 400×400×700mm

Testing width: 40cm ( can be widened by requirements)

Power: 1#, 220V, 10A

Rotation method: high precision ball screw rod

Fixture: can be customized stretching and compressing fixture

Temperature control chamber

Temperature range: -40°C ~150°C

Control method: P.I.D Automatic calculation

Humidity range: 20%~98%

Tem & Hum accuracy: ±0.5°C, ±2.5% RH

Temp& Humid regularity: ±2°C, ±3% RH

Compressor: France Tecumseh

Cooling Speed: 1 °C/ min

Counter: LED,0~9999.99

Inner material: SUS 304 Stainless steel

Inner Chamber size: (L×W×H)40×40×70cm (can custom)
