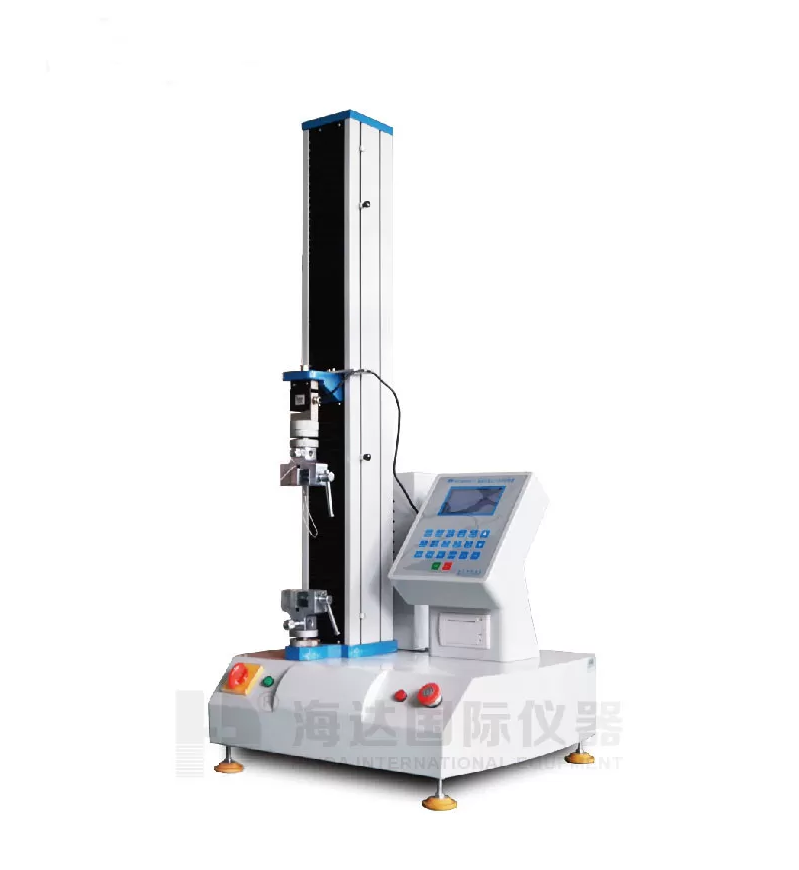

HAIDA HD-B609-S 电脑拉力试验机 (for Film, Textile)

Frame capacity: 200kg

Load cell brand: Germany brand load cell for high accuracy 200kg (5,10,50,100kg are optional)

Load accuracy: 0.5% F.S

Control system: LCD with build-in printer /PC with windows 7 system

Motor: Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod

Force reading: kgf, Ibf, N, KN, T etc

Vertical test space: 900mm including fixture

Test speed: 0.1~500mm/min (adjustable)

Software: TM 2101

Curves display: Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display: Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…

Safety features:

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat
