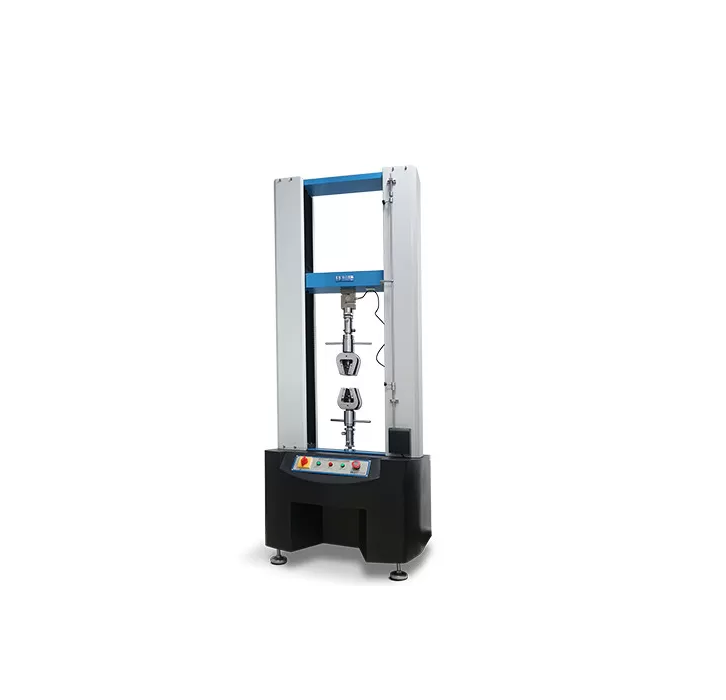

HAIDA HD-B611S 大型金属万能拉力试验机 (10T)

Frame capacity: 10T

Load cell brand:

 USA brand transcell load cell for high accuracy

 10T (2T, 5T are optional)

Load accuracy: 0.5% F.S

Control system: PC with windows 7 system

Motor: Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod

Force reading: kgf, Ibf, N, KN, T etc

Vertical test space: 1100mm including fixture

Horizontal test space: ≤400mm

Test speed: 0.1~300mm/min (adjustable)

Software: TM 2101

Curves display: Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display: Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…

Safety features:

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat
