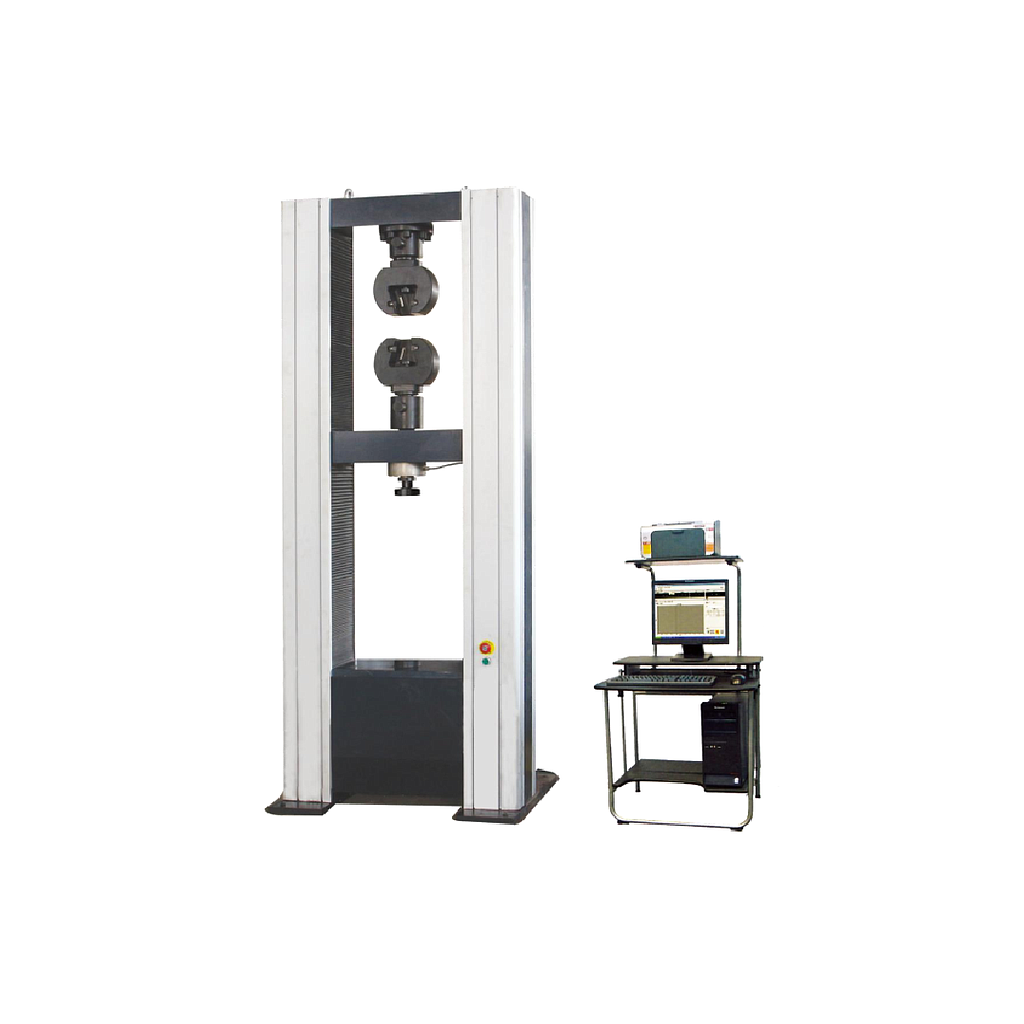

HAIDA HUD-B612-S 拉力测试仪 (100KN)

Max. Force: 10T (100KN)

Load cell: Germany brand load cell for high accuracy

Control system: PC with windows 7 system or windows 10 system

Motor: Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod

Force reading: kgf, Ibf, N, KN, T, etc.

Stoke: 1100mm including fixture

Load cell resolution: 1/250,000

Load precision: ≤0.5%

Test speed: 0.01~300mm/min (adjustable)

Test width: ≤400mm

Dimension (L×W×H): 868*580*1836mm

Weight: 600KG  Approx

Software: TM 2101

Curves display: Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display: Max. force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm2) etc…

Safety features:

    1 E-Stop

    2 Over-load protection

    3 Upper and lower limit switches

    4 Load sensor with automatic retreat
