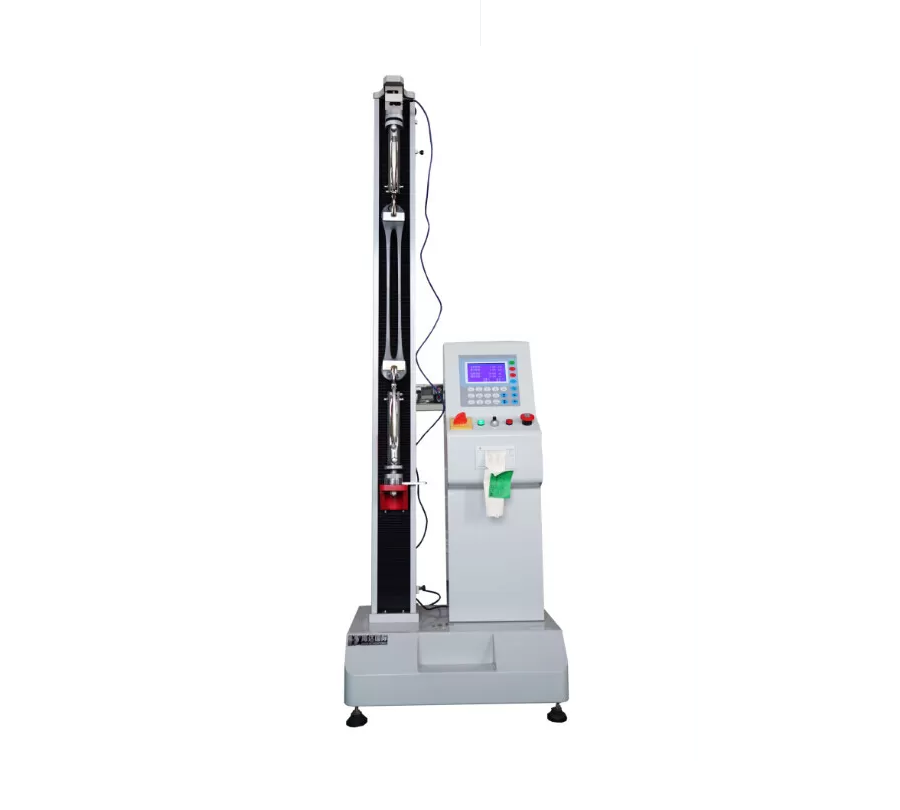

HAIDA HD-B617 铜线延伸率测试机 (200kg)

Sensor: Celtron load cell

Capacity: 5, 10, 20, 25, 50, 100, 200kg

Unit Switchover: G, KG, N, LB

Display Device: LCD or PC

Resolution: 1/250,000

Accuracy: ±0.5%

Max. Stroke: 1200mm (excluding fixture)

Test Speed: 0-500mm/min (adjustable )

Motor: Taiwan 400w servo motor

Screw: High Precise Ball Screw

Elongation Accuracy: 0.001mm

Power: 1phase,AC220V, 50HZ

Weight: Approx.85kg

Accessories:

 One set tensile clamp

 One set Lenovo computer

 One piece English software CD

 One piece operation video CD

 One piece English user manual
