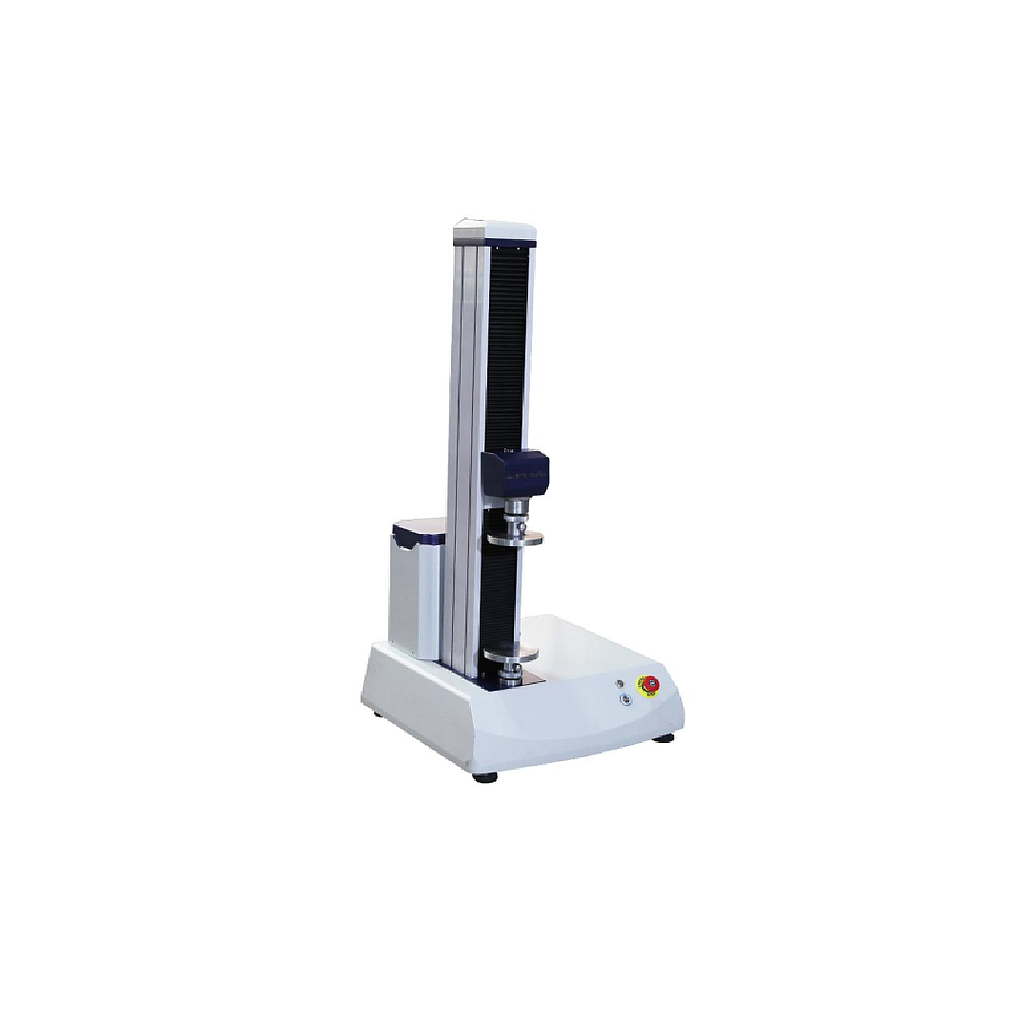

HAIDA HUD-B609-S 拉力测试仪 (2KN)

Max. Force: 200 kg (2KN)

Control system: PC with windows 7 system or windows 10 system

Motor: Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod

Force reading: kgf, Ibf, N, KN, T etc

Load Precision: ≤0.5%

Test speed: 0.1~500mm/min (adjustable)

Test width: N/A

Dimension (L×W×H): 520*515*1250mm

Weight: 68KG Approx

Curves display: Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display: Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…

Safety features:

    1.E-Stop

    2. Over-load protection

    3.Upper and lower limit switches

    4. Load sensor with automatic retreat
