HAKKO FR-701 带3芯无插头W / FR-4103维修系统(260W)

Power consumption: 260W

・Station

Dimensions: 190(W)×140(H)×220(D)mm

Weight: 6.2kg

・ Station (Soldering)

Output voltage: AC 26V

Temperature range: 50 to 480ºC

Temperature stability: ±1ºC at idle temperature (When set to 200 to 480ºC)

・Station (Desoldering)

Output voltage: AC 24V

Vacuum generator: Vacuum pump, double cylinder type

Vacuum pressure: 80kPa (600mmHg)

Suction flow: 15L/min.

Temperature range: 330 to 450ºC

Temperature stability: ±5ºC at idle temperature

・ Soldering iron

Power consumption: 65W (26V)

Tip to ground resistance: <2Ω

Tip to ground potential: <2mV

Heating element: Ceramic heater

Standard tip: Shape-B (No.T18-B)

Cord length: 1.2m

Total length: 222mm (with B tip)

Weight: 52g (with B tip)

・Desoldering Gun

Power consumption: 140W (24V)

Nozzle to ground resistance: <2Ω

Nozzle to ground potential: <2mV

Heating element:; Composite heater

Standard nozzle: Φ1.0mm S type (No.N61-05)

Cord length: 1.2m

Total length: 168mm (with Φ1.0mm S type nozzle)

Weight: 190g (with Φ1.0mm S type nozzle)

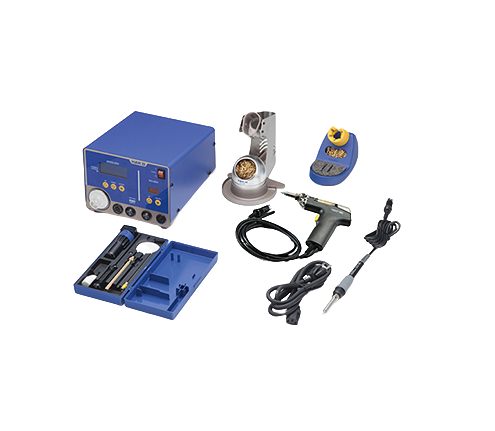

Packing list: Station、Soldering iron (FX-8801), Desoldering gun (FR-4103), Iron holder for soldering gun (with cleaning wire), Iron holder for desoldering iron (with cleaning sponge, cleaning wire), Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4]), Power cord, Instruction manual
