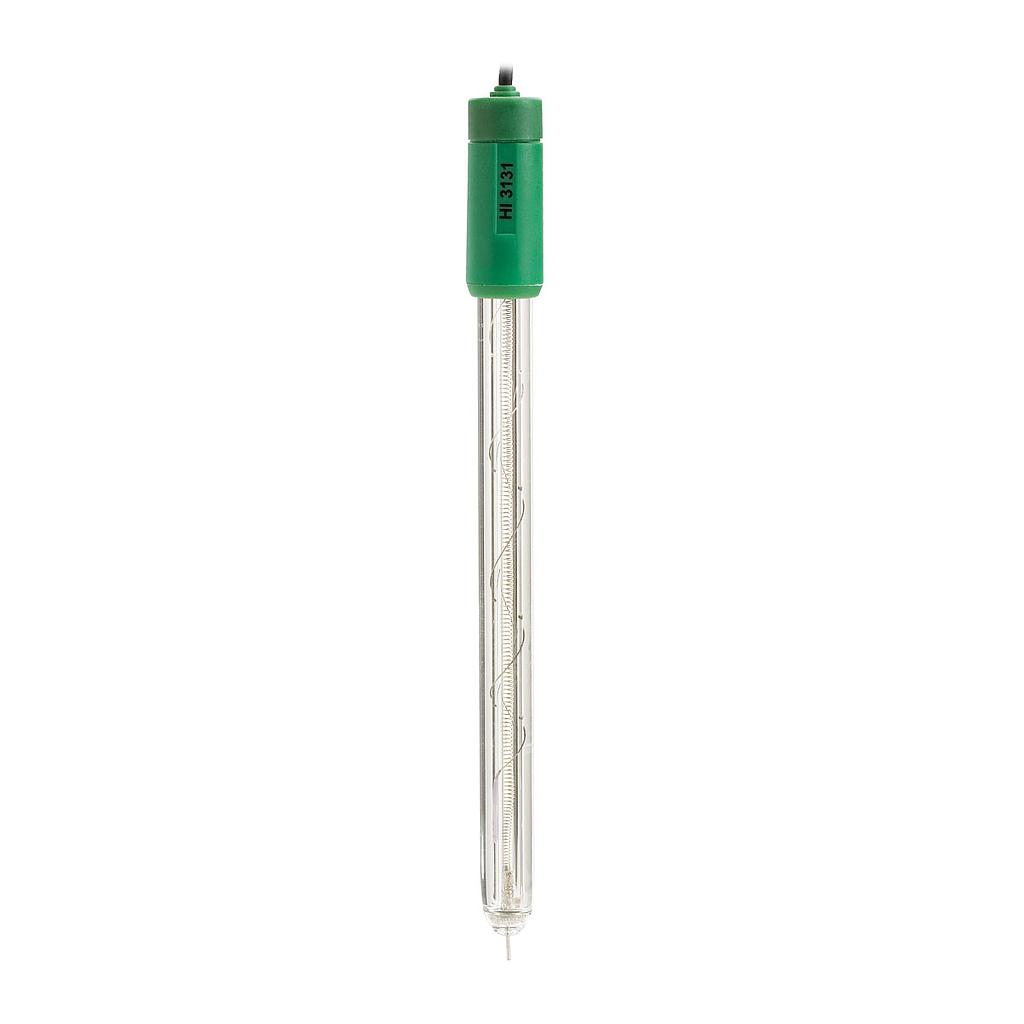

Hanna HI3131B ORP 电极

Body Material: glass

Reference: single, Ag/AgCl

Junction/Flow Rate: ceramic, single / 15-20 μL/h

Electrolyte: 3.5M KCl + AgCl

Range: pH: ORP: ±2000 mV

Max Pressure: 0.1 bar

Tip Shape: platinum pin

Diameter: 12 mm

Body Length / Overall Length: 150 mm / 205.5 mm

Recommended Operating Temperature: -5 to 70°C (23 to 158°F)

Temperature Sensor: no

Matching Pin: no

Amplifier: no

Digital: no

Cable: coaxial; 1 m (3.3’)

Connection: BNC

Applications: general purpose, laboratory general purpose, ORP titrations
