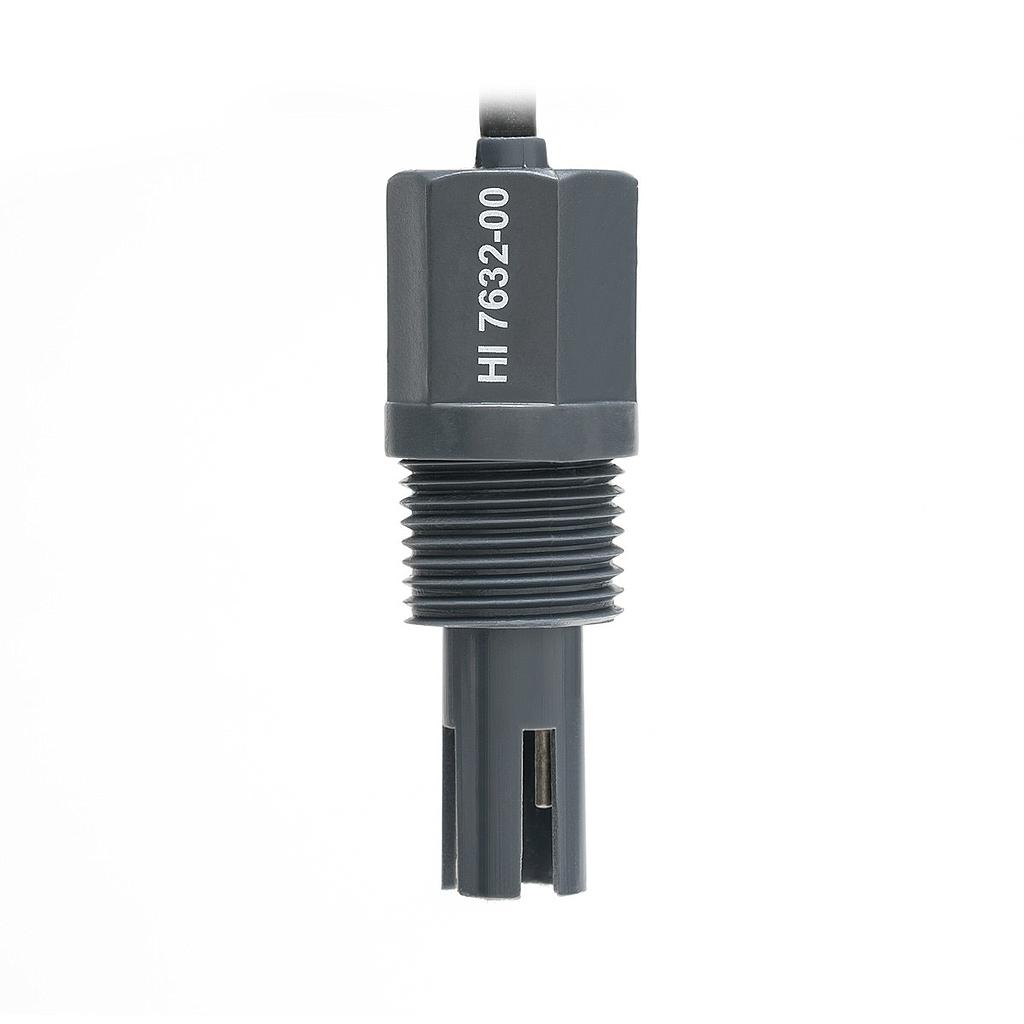

The HI7632 is a conductivity sensor, using bipolar technology for accurate EC and TDS measurements. An AC voltage is applied to the two electrodes and the current measured is generated. HI7632 measure EC and TDS ladders for the following small controllers:
Built-in temperature sensor
The integrated temperature sensor of the HI7632 is very important for accurate EC and TDS measurements. Because the temperature of a solution can change the conductivity, the fast and stable temperature sensor enables accurate compensation of EC and TDS.
The HI 7632 NPT threaded connector allows easy connection to the "T" port without additional accessories.
Wide choice of cable lengths
HI7632 has many different cable lengths based on your specific needs:
HI7632-00 cable 2 meters (6.6 feet)
HI7632-00 / 6 cable 6 meters (19.7 feet).
Cable: 2 m (6.6 ')
Transducer: 64 mm (2.5 ")
Connector: Ren ½ "
Temperature sensor: Yes
