mV Range: -1000 to +1000 mV
mV Resolution: 1 mV
mV Accuracy: ±5 mV
mV (ORP) Calibration Slope: 90 to 110% slope trimmer
Analog Input: Signal high impedance 10¹² Ohm; reference and matching pin inputs are available; 4-20 mA
Enclosure flame retardant ABS body and front panel; transparent splash-proof front cover
Panel Cutout: 141 x 69 mm (5.6 x 2.7’’)
Recorder Output : 0-20 mA or 4-20 mA (isolated)
Power Supply: 115 VAC ±10%; 50/60 Hz
Environment: -10 to 50°C (14 to 122°F); RH max 95% non-condensing
Weight: 1 kg (2.2 lb.)

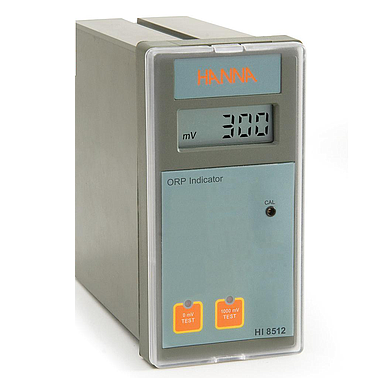

Ordering Information: The HI8512 is supplied complete with mounting brackets and instructions.
