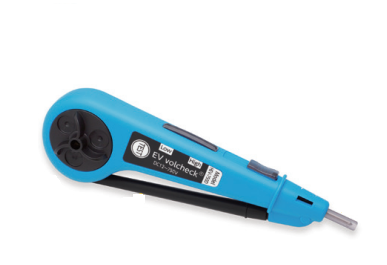

HASEGAWA HEV-750D 低压电动车用电动检查器 (DC12V~750V)

■ Specifications:

Working voltage range: DC12V～750V

Operation starting voltage (No polarity):

- Low ：DC 6V± 3V

- High ： DC35V± 5V

Dielectric strength: Between contact tip (metal fitting) and grip: 20 kVAC, 1 min

Leakage current: At dielectric strength test: 500 μA or less

Indication of operation:

- Light: Red LED, 2 pcs

Low：Low lamp flashes.

High： High + Low lamps flash.

It shall be possible to confirm luminance of 8,000 lux

- Sound: Piezoelectric buzzer: Intermittent sound (High only)

50dB/30cm

Battery: R03(1.5V) × 2 pcs

Operating temperature range: －10℃～＋40℃

Dimensions:

Main body: 165mm×50mm×22mm (except for protruding part)

Probe: φ9mm×125mm

Weight: About 70 g

■ Features:

• Indication of battery voltage is possible.

“Low voltage of the control system/high voltage of the power system” is indicated by sound and light.

• Discharge promotion function of residual electric charge

The residual electric charge stored in the load after disconnecting high-voltage battery can be rapidly discharged
