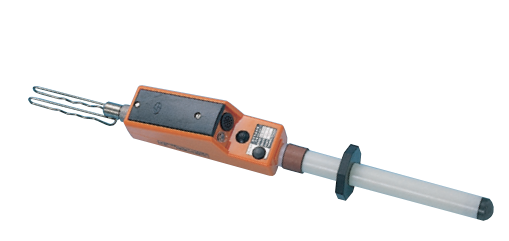

HASEGAWA HH-6A 无接触式高压测试笔 (AC3kV~7.2kV)

■ Specifications:

Working voltage range: AC3kV~7.2kV

Insulation resistance: Between contact tip (metal fitting) and grip, 100MΩ or more

Dielectric strength: Between contact tip (metal fitting) and grip: 20kVAC, 1 min

Leakage current: At dielectric strength test: 500 μA or less

Indication of operation:

- Light: It shall be possible to confirm luminance of 8,000 lux. Light is emitted in uncharged state

- Sound: 50 dB or more at a distance of 2m. Sound is generated in uncharged state

Operating temperature range: -10℃~+40℃

Battery: R03(1.5V) × 2 pcs

Structure: Waterproof (Ingress of water is prevented)

Weight: About 580g

■ Accessory: Bag for housing
