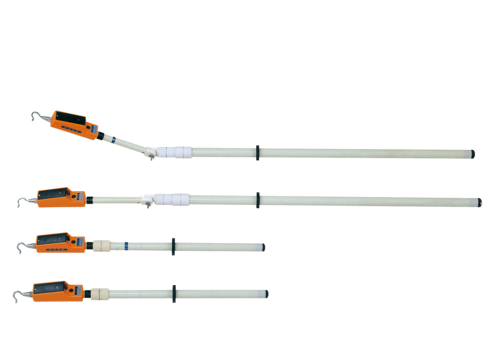

HASEGAWA HP-T3 无线式检相器 (3.3kV)

■Specifications

Working voltage range: 3.3kV

Frequency: 50 Hz or 60 Hz (Either one is to be designated.)

Phase test function: Discrimination of in-phase or different phase of 120°

 * Attention: There is no phase sequence (phase rotation) function.

Possible distance of phase test: Distance between transmission side and reception side: Within 5 m

Total length:  550mm without telescopic structure）

Indication of operation:

- Light: It shall be able to confirm in the luminance of 8,000 lux.

- Sound: 50 dB or more at a distance of 3 m

Battery: 6R61 or 6F22(9V), each 1 pcs

Operating temperature range: －10℃～＋50℃

Structure: Waterproof

Weight: 700g×2

Dielectric strength:

-Contact tip - Grip: 14 kV, 5 min

■Accessory: Bag for housing

［Attention］

There is no phase sequence (phase rotation) checking function.

(Only indicating in-phase, different phase)

Please designate frequency of 50 Hz or 60 Hz
