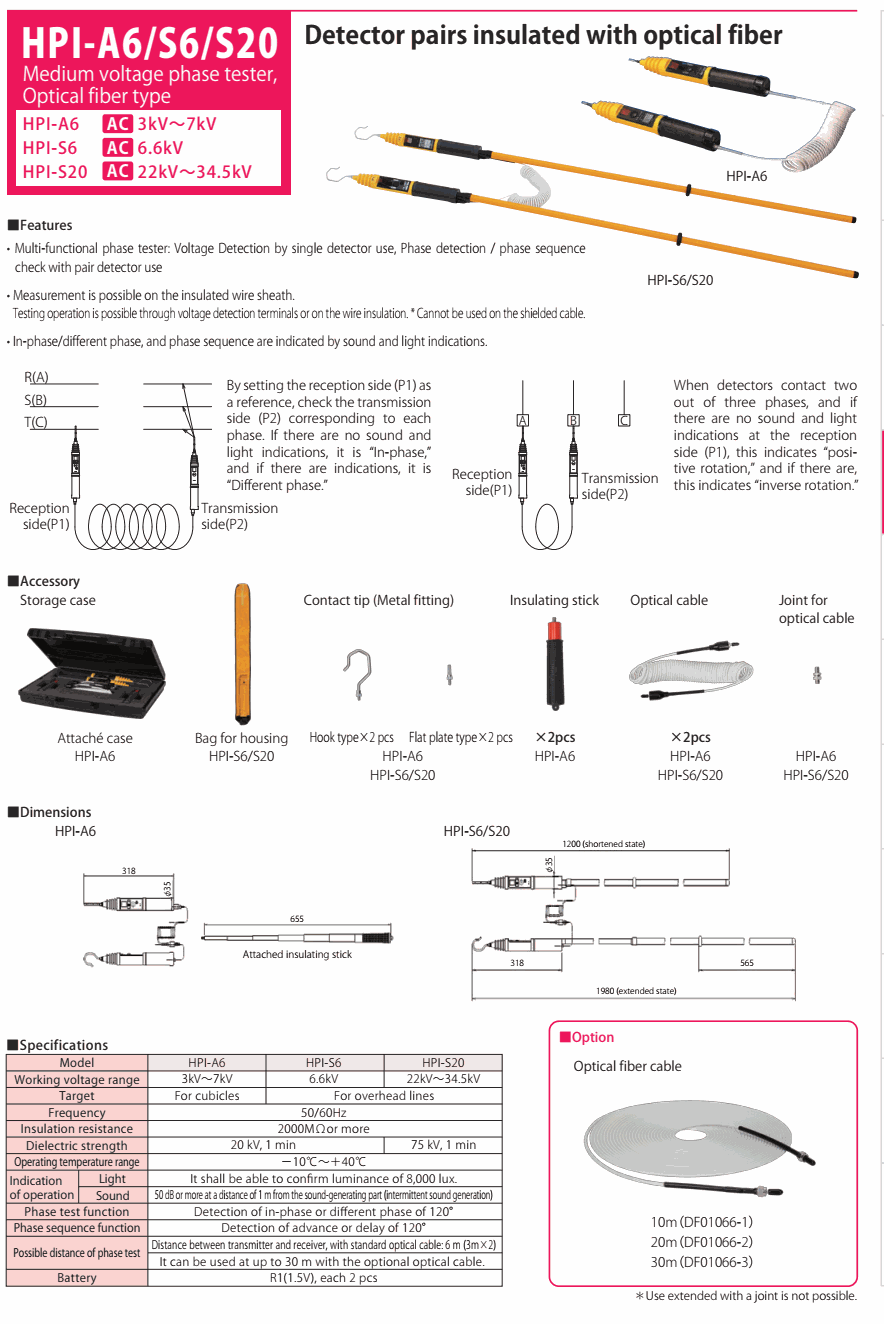

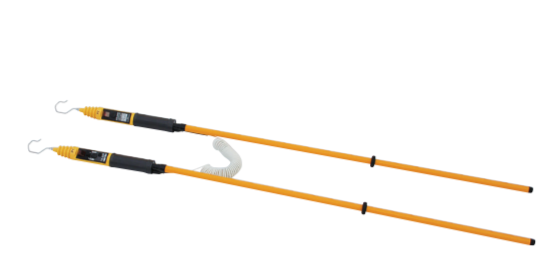

HASEGAWA HPI-S6 无线式检相器 (AC 6.6kV)


Working voltage range: 6.6kV

Target: For overhead lines

Frequency: 50/60Hz

Insulation resistance: 2000MΩ or more

Dielectric strength: 20 kV, 1 min

Operating temperature range: - 10℃~+ 40℃

Indication of operation:

Light: It shall be able to confirm luminance of 8,000 lux.

Sound: 50 dB or more at a distance of 1 m from the sound-generating part (intermittent sound generation)

Phase test function: Detection of in-phase or different phase of 120°

Phase sequence function: Detection of advance or delay of 120°

Possible distance of phase test: Distance between transmitter and receiver, with standard optical cable: 6 m (3m×2)

It can be used at up to 30 m with the optional optical cable

Battery: R1(1.5V), each 2 pcs


Bag for housing

Contact tip (Metal fitting): Hook type×2 pcs, Flat plate type×2 pcs

Optical cable x 2

Joint for optical cable

■Option: Optical fiber cable

10m (DF01066-1)

20m (DF01066-2)

30m (DF01066-3)
