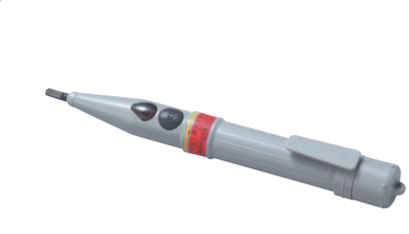

HASEGAWA HSE-7T1 中/低压检测器 (AC 80~7000V)

■ Specifications

Working voltage range: AC 80~7000V

Operation starting voltage (Voltage to ground):

  • Low voltage: Exposed live part 80 V (in contact with live part)

  • High voltage: Exposed live part 400 V (in contact with live part)

  • Insulated wire: (φ5mm OE wire) 3.000 V

Frequency: 50/60Hz

Insulation resistance: 100 MΩ or more between detector and grip

Dielectric strength: 20 kV for 1 min between contact tip and grip

Leakage current: 0.5 mA or less at dielectric strength test

Battery: LR44(1.5V) × 2 pcs

Battery life: 3 hr. in continuously operating state; about 2 years in unused state

Operating temperature range: -10℃~+40℃

Weight: About 55g

■ Option: Storage case (DA04003), Contact tip for replacement (UH05004)
