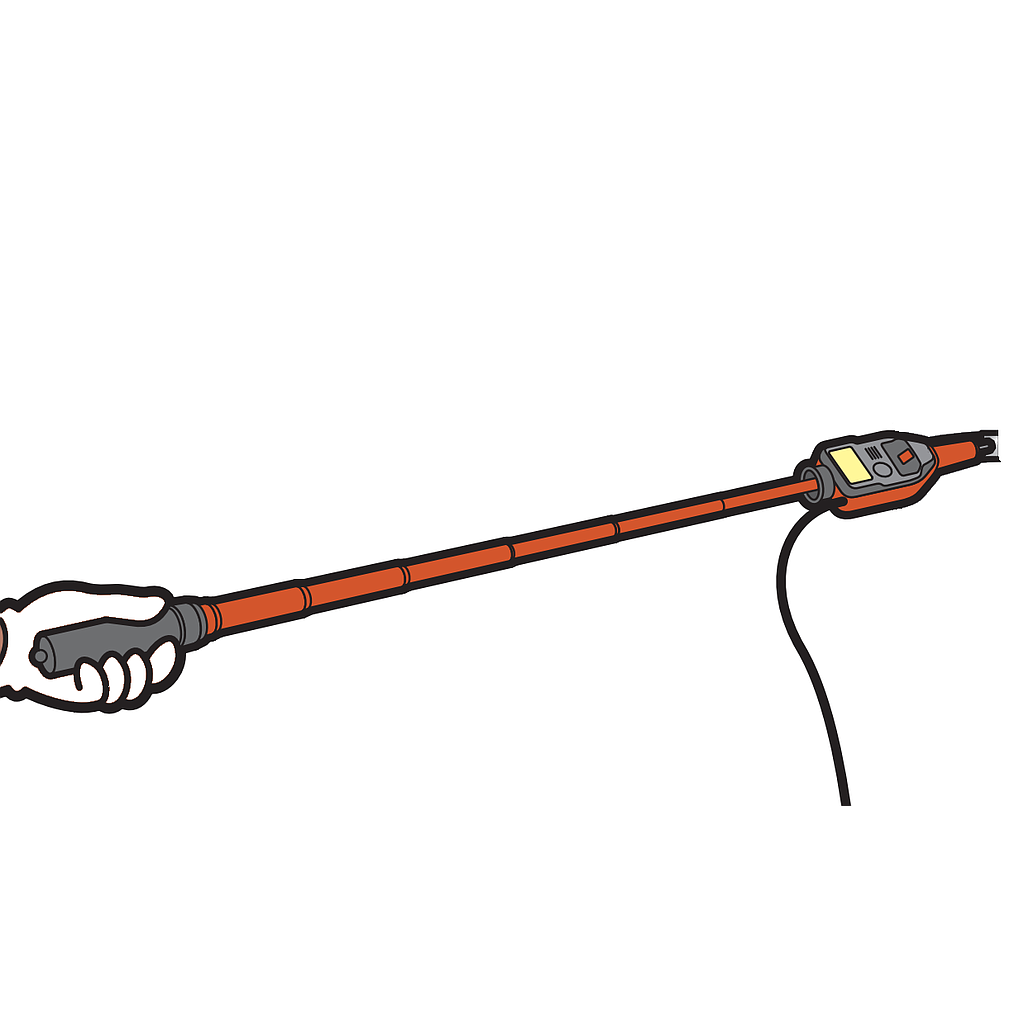

HASEGAWA HSN-6N 中/低压检测器 (AC60V~7000V)
制造商: HASEGAWA Model: HSN-6N 来源: Japan 保障: 12 Month - 联系

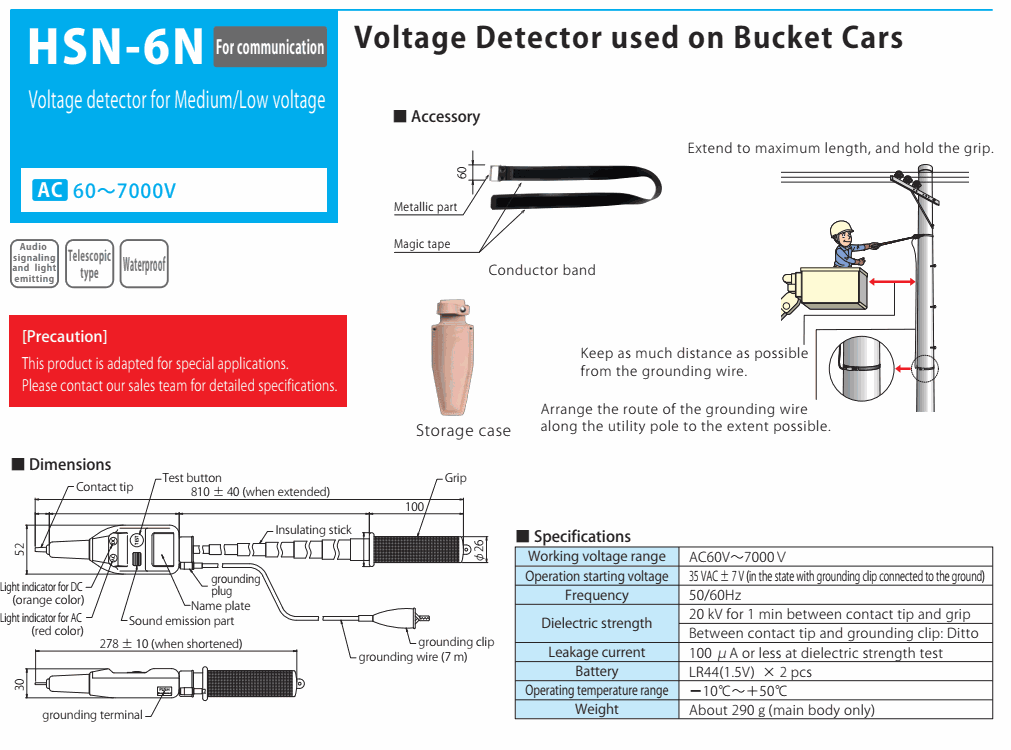

■ Specifications
Working voltage range: AC60V~7000V
Operation starting voltage: 35 VAC ± 7 V (in the state with grounding clip connected to the ground)
Frequency: 50/60Hz
Dielectric strength:
• 20 kV for 1 min between contact tip and grip
• Between contact tip and grounding clip: Ditto
Leakage current: 100 μA or less at dielectric strength test
Battery: LR44(1.5V) × 2 pcs
Operating temperature range: -10℃~+50℃
Weight: About 290 g (main body only)
■ Accessory: Conductor band, Storage case
Datasheet
