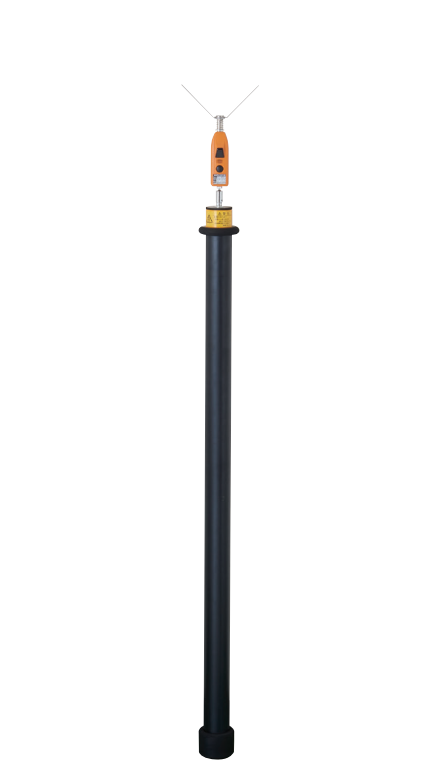

HASEGAWA HST-30L 特高用検电器 (AC 3kV～34.5kV)

■ Specifications

Working voltage range: AC: 3kV～34.5kV

Operation starting voltage: AC: 500V±100V

Frequency: 50/60Hz

Dielectric strength:

- on insulating stick AC 75kv/300mm for 1minute. (insulating stick excluding contact tip and joint)

- 1 place

Leakage current: 0.1mA or less during dielectric strength test (1 place)

Battery: LR44(1.5V) × 2 pcs

Life of the battery: About 4 hr. under continuously operating state

Operating temperature range: 10℃～＋50℃

Weight: About 3kg

■ Accessory: Bag for housing (DA14006)

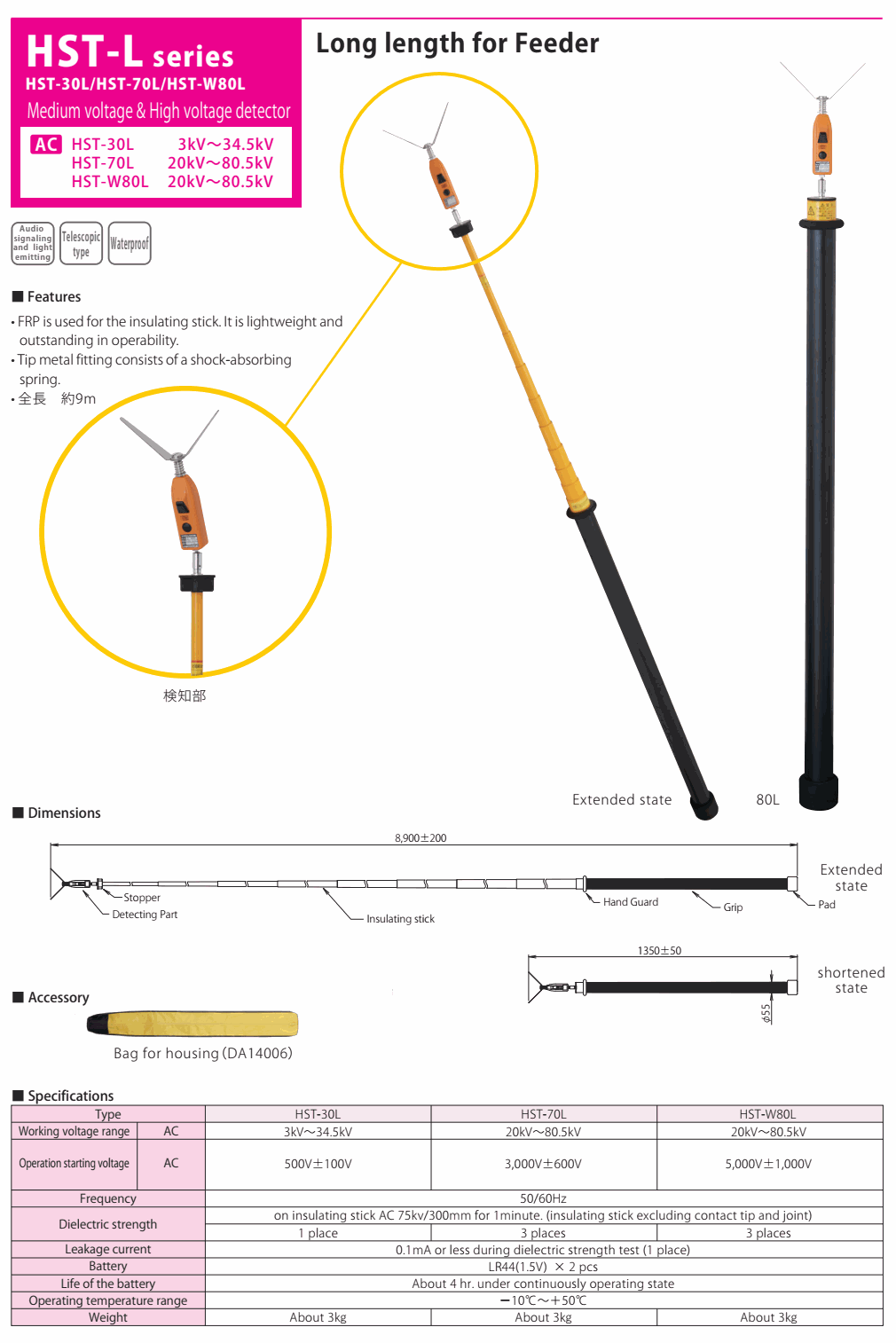

Datasheet
