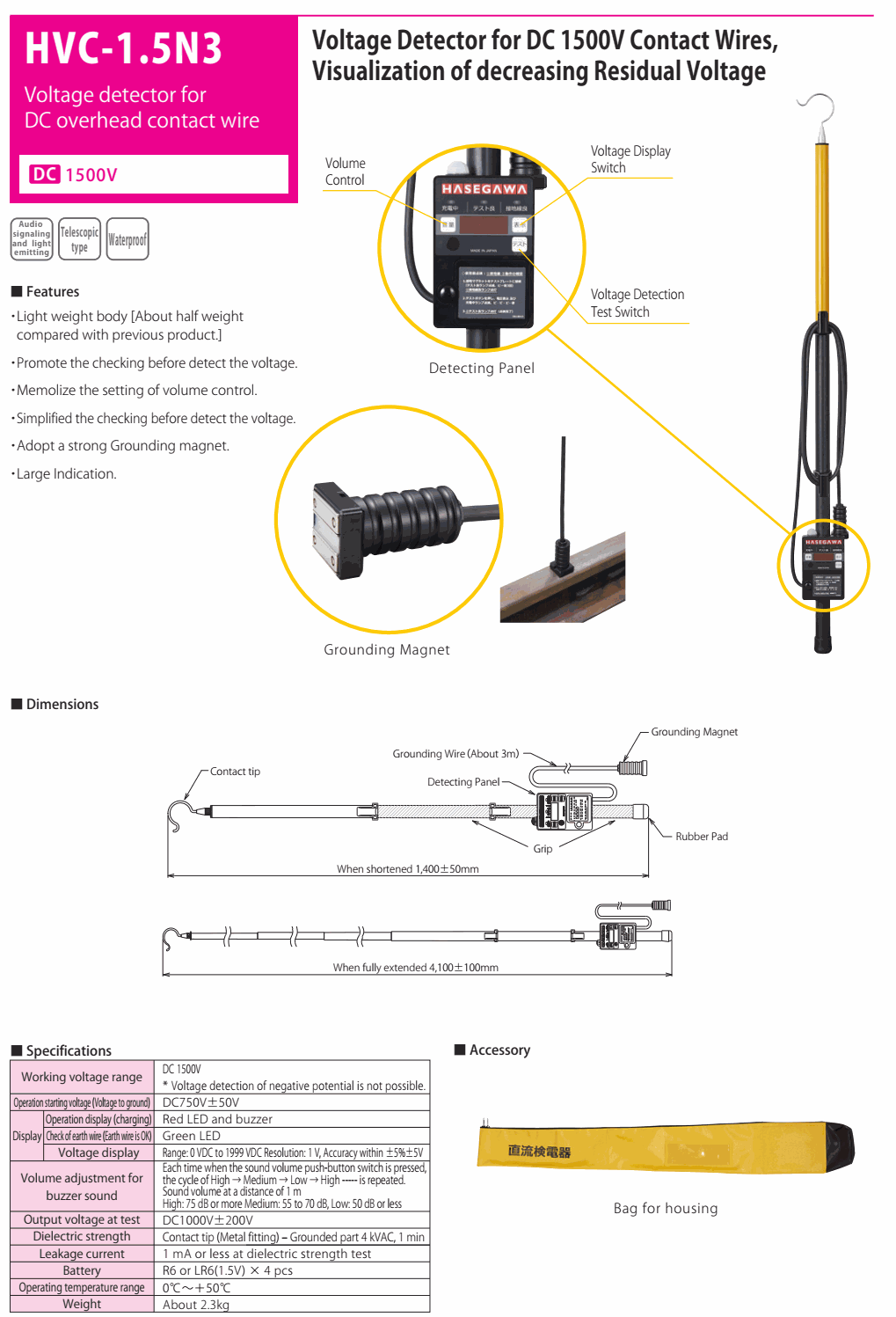

Working voltage range: DC 1500V
* Voltage detection of negative potential is not possible.
Operation starting voltage (Voltage to ground): DC750V±50V
- Operation display (charging): Red LED and buzzer
- Check of earth wire (Earth wire is OK): Green LED
- Voltage display:
+ Range: 0 VDC to 1999 VDC
+ Resolution: 1 V
+ Accuracy: within ±5%±5V
Volume adjustment for buzzer sound:
+ Each time when the sound volume push-button switch is pressed, the cycle of High → Medium → Low → High ----- is repeated.
+ Sound volume at a distance of 1 m
+ High: 75 dB or more; Medium: 55 to 70 dB; Low: 50 dB or less
Output voltage at test: DC1000V±200V
Dielectric strength: Contact tip (Metal fitting) ‒ Grounded part 4 kVAC, 1 min
Leakage current: 1 mA or less at dielectric strength test
Battery: R6 or LR6(1.5V) × 4 pcs
Operating temperature range: 0℃～＋50℃
Weight: About 2.3kg
■ Accessory: Bag for housing

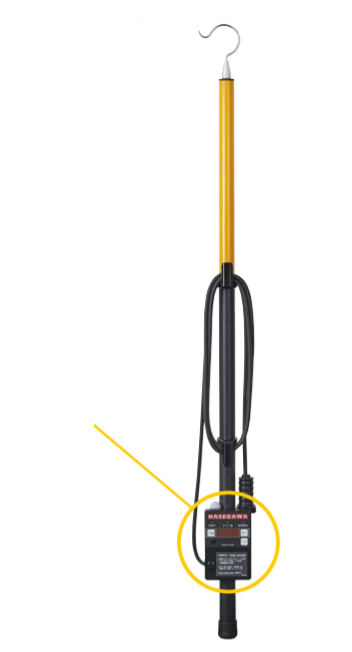

・Light weight body [About half weight compared with previous product.]
・ Promote the checking before detect the voltage.
・ Memolize the setting of volume control.
・ Simplified the checking before detect the voltage.
・ Adopt a strong Grounding magnet.
・ Large Indication.
