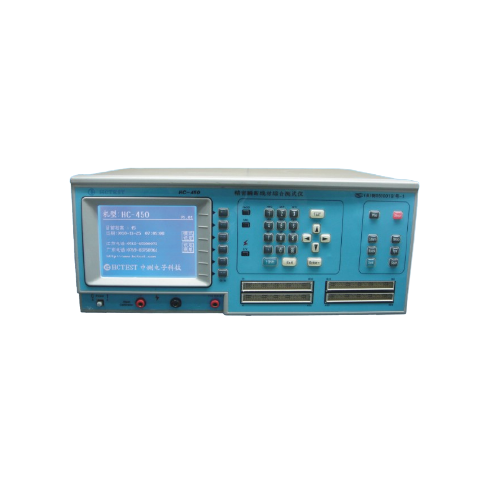

HCTEST HC-450 精密电压断续分析仪 (4 dây; 5~1000VDC; 50~700VAC; 0.01~5mA)

Test item range:

+ Open/ Short (os): 200Ω~50KΩ

+ Conductance (Cond.): 10mΩ~50Ω

+ Resistance (R): 0.1Ω~1MΩ

+ Capacitance (C): 10pF~5000uF

+ Zener (D): 0~10V

+ Dc Insulation (Is.): 1MΩ~1000MΩ

+ Ac Hipot (IL): 0.01mA~5mA (standard)

+ Arcing: 0~8 (0, off)

+ Intermittent Conductance (Int.cond.): 10mΩ~50Ω

+ Intermittent Open/Short (Int.os): 200Ω~50KΩ

+ High Speed Intermittent (Int.open): 100ns~999us

Test information:

+ Output Rating: 5 VDC, 20mA max

+ DC Hipot/ insulation 5~1000V

+ AC Hipot / 50~700V (50V Resolution)

Test mode:

+ NORMAL/ S.SIDE/ S.STEP

+ High Speed Intermittent experiment

+ Rated current & voltage analysis

Communication interface: Handler/ Rs232/ Print/ USB

Measurement& scanning Mode:

+ Series/ Parallel

+ Auto/Short Switchable

Decision mode: Pass /fail (LED); Speaker

Lock Mode: Standard lock/ Password lock

Starting mode: Auto/ Manual/ Continuous/ External

Memory: 1024KB

Comprehensive information:

+ Power Input: 220V±10% 60Hz  (Option 110V 50Hz)

+ Power consumption: 100W

+ Temp.: -10°C~35°C

+ Humidity : RH≤75%

+ Size: 425*190*350 (64p or 128P)/ 425*240*350 (256P)

+ Weight: 13kg(64p)/ 14kg(128p)/ 18kg(256p)

+ Display: 320*240 LED
