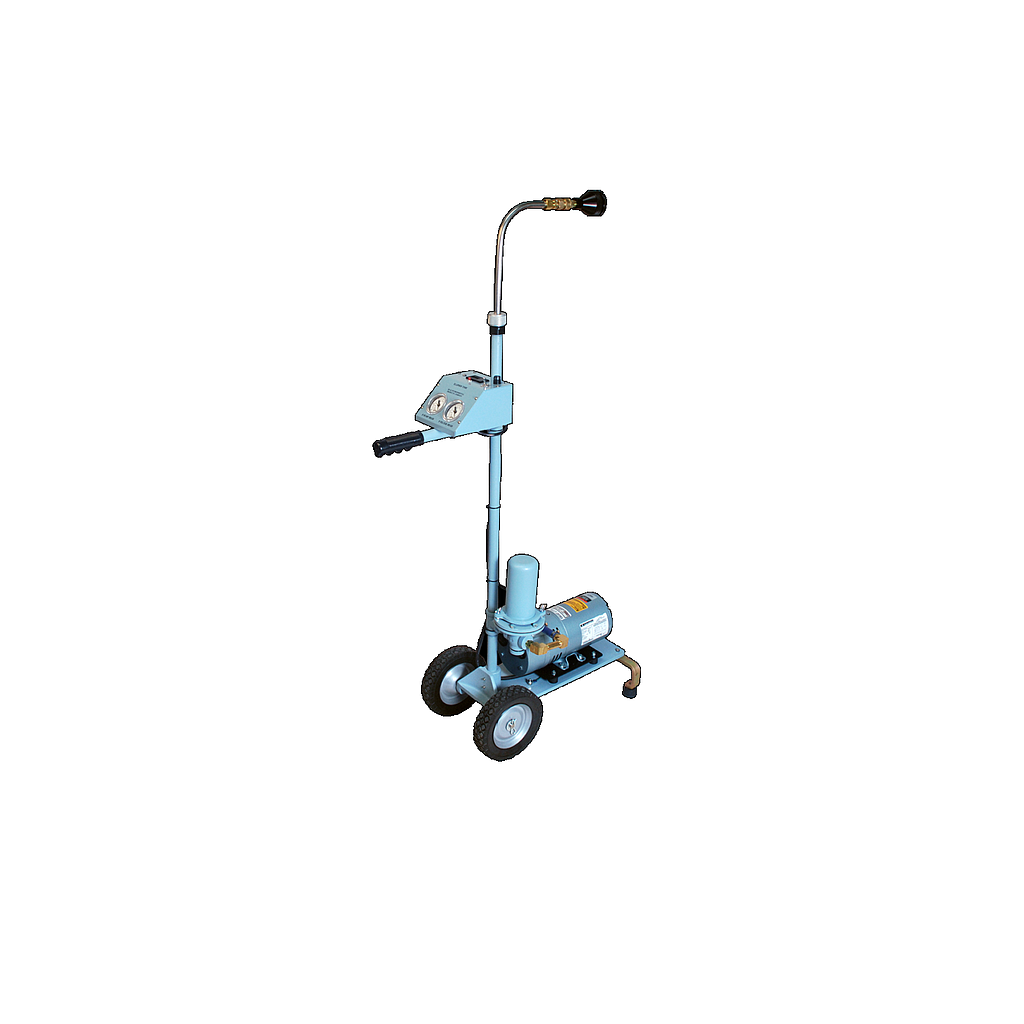

HI-Q MRV-0523CV-HMF/230 连续工作空气采样器 (230 VAC, 4.0 CFM)

- Air Mover: Oilless, Rotary Vane, Vacuum Pump with 1/4, 1/3, or 3/4 HP, 115 or 230 VAC, Shock Mounted Motor.

- Control Valve (MCV-260): Mechanical, Heavy Duty, Automatic Flow Control Valve. This valve controls the air flow rate to ±5% of the operator set flow rate.

- Timer: Electronic, Elapsed, Resettable Timer in Hours & Tenths

- Optional Flow Meter: Add “-HMF” to model number for Hard Mounted Flowmeter option or see removable V-FLO-XX units described below.

- Filter Holders: See Filter Holders For Air Sampling, “RV-Series”

- Filter Cartridges: See Analytical Cartridges

- Filter Paper: See Filter Paper For Air Sampling

- Air Flow Calibrator: See Air Flow Calibrators

- Replacement Pumps/Kits: See Replacement Rotary Vane Vacuum Pumps & Service  Kits in the “Air Sampling Accessories Section” of this catalog

- Net Ship Wt. (lbs.): 68 lbs., 2 boxes

- Power (VAC): 230 VAC

- Motor (HP):  1/4 HP

- (50/60 Hz):  1425/1725

- Max. Vac: 26” Hg

- Max CFM (open air): 4.0 CFM

- Hard Mounted Flowmeter (HMF):  Yes

- NRTL* Listed: Yes
