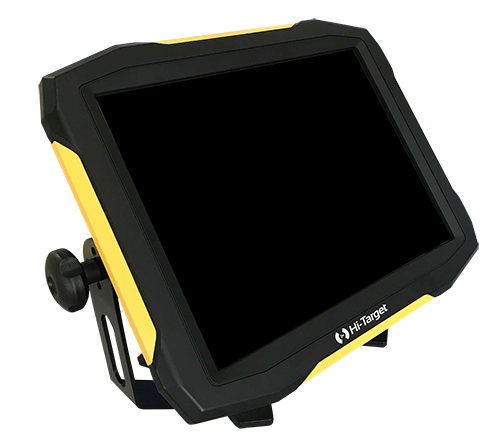

Hi-Target HD-Lite 双频回声测深仪

Measurement

Frequency: 200kHz

Range: 0.15m to 200m

Accuracy: 0.01m±0.1%

Draft: 0m to 15m

Beam Angle: 5°

Sound Velocity : 1370m/s to 1700m/s

Sound Resolution: 1m/s

Ping Rate: Max 30Hz

Output Data Format: NMEA DBT, NMEA DBS, DESO 25, ODOM, Hi-Target

Weight: 5.8 kg

Dimension: L 44mm x W 32mm x H 110mm

Software: Hi-Max Sounder

Hardware Part

CPU: 1.92 GHz, 2 Core

RAM: 2GB

Storage: 32GB ( Max 80GB )

Screen Size: 15 inch

Interface: 3*USB 2.0, 3*RS232, 1 Bluetooth, 1 VGA

Temperature: -10℃ to 55 ℃

Power: 10V to 30V or 220V AC
