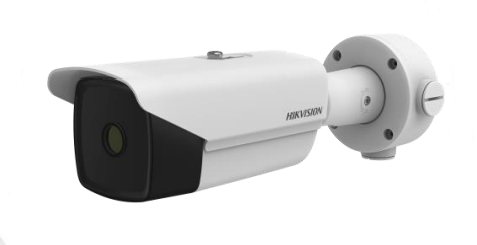

HIKMICRO DS-2TD2167-7/PY Anti-corrosion Thermal Network Bullet Camera (640×512 pixel, -20°C~150°C)

Thermal

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Resolution: 640 × 512

Pixel Interval: 17 μm

Response Waveband: 8 μm to 14 μm

NETD: ≤35 mK (@25°C,F#=1.0)

Focal Length: 6.5 mm

IFOV: 2.62 mrad

Aperture: F1.0

Field of View: 88.5° × 73.2° (H × V)

Min. Focusing Distance: 0.6 m

Digital Zoom: ×2, ×4, ×8

Image Effect

Target Coloration: Yes. Supported in white hot and black hot mode.

Smart Function

VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).

Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)

Temperature Accuracy: ± 8 °C (±14.4 °F)

Fire Detection: Dynamic fire detection, up to 10 fire points detectable.

General

Web Client Language: 32 languages

Power: 12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3)

Power Consumption: 12 VDC ± 20%: 0.4 A, max. 4.5 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5 W

Work Temperature/Humidity: -40 °C to 65 °C (-40 °F to 149 °F) 95% or less

Protection Level: IP67 Standard TVS 6000 V lightning protection, surge protection, voltage transient protection

Dimension: 351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")

Weight: Approx. 1.77 kg (3.90 lb)
