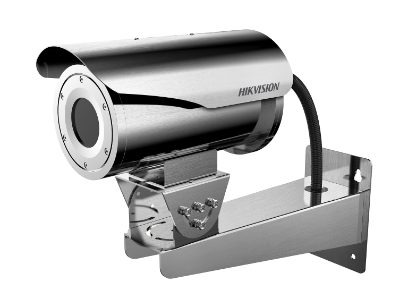

HIKMICRO DS-2TD2466T-25X 防腐蚀热网络子弹热像仪 (640×512 pixel, -20°C~150°C)

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution: 640 × 512

Pixel Interval: 17 μm

Response Waveband: 8 μm to 14 μm

NETD: less than 40mk (@25°C,F#=1.0)

Lens (Focal Length): 25 mm

MRAD: 0.68 mrad

Field of View: 24.55° × 19.75° (H × V)

Min. Focusing Distance: 2 m

Aperture: F 1.0


Smart Function

VCA (Video Content Analysis): 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.

Temperature Measurement: 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).

Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F), 0 °C to 550 °C (32 °F to 1022 °F)

Temperature Accuracy: Max (± 2 °C, ± 2%)

Fire detection: Dynamic fire point detection, up to 10 fire points detectable


General

Menu language: English

Power: 100-240 VAC PoE (802.3at)

Power Consumption: 100-240 VAC, max.15W PoE (802.3at)

Working Temperature/Humidity: -40 °C to 60 °C (-40 °F to 140 °F), 90% or less

Protection Level: IP68 Standard TVS 6000V Lightning protection, surge protection, voltage transient protection

Dimensions: 409.6 mm × 179.2 mm × 183.3 mm (16.14″ × 7.06″ × 7.22″)

Weight: Approx. 19.11 kg (42.13 lb)

Accessarys: Standard: Wall Mounting Bracket DS-1707ZJ-E Optional: Explosion-Proof Tube DS-1677ZJ-XS-1.0, Junction Box DS-1675ZJX-S
