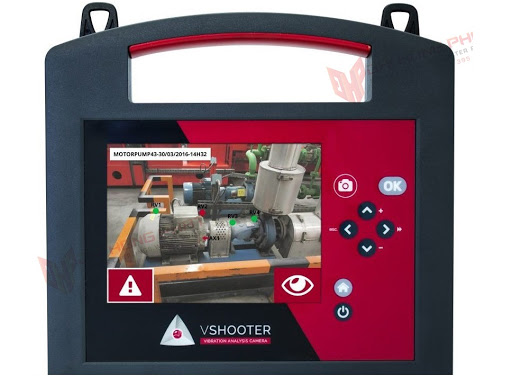

Hilger u.Kern VSHOOTER VBS1T Vibration Meter with camera

- Calculation of overall and FFT values:

+ Vibration Velocity mm/s (RMS) with 2-1000 Hz filter

+ Vibration Displacement μm (P-P & 0-P) with 2-1000 Hz filter

+ Bearing Condition g (RMS & Crest (0-P/RMS)) with 1000-10000 Hz filter

+ FFT alarm spectrum (vibration (2-1000 Hz in mm/s), bearing (2-10000 Hz in g))

- Clear, high-resolution color touch panel, ISO 10816-3

- Auto diagnosis function (Unbalance, Misalignment, Looseness, Lubrication, Shock)

- High-quality acceleration sensor made of steel with mounting magnet, 80g max, twisted cable with BNC output

- With embedded VGA camera and color OLED screen (640x480 pixels)

- With embedded infrared pyrometer (T° sensor)

- With embedded white LED’s stroboscope (RPM sensor)

- Rechargeable Li-Ion battery with around 8H lifetime (universal USB 5V-2A)

- Audio output with stereo headphone for bearing/gear high frequency listening

- 64 GB internal SD memory card

- “Only One Time” or “Trending (Data collector)” measurement capabilities

- Automatic report on PC with USB cable for PC download
