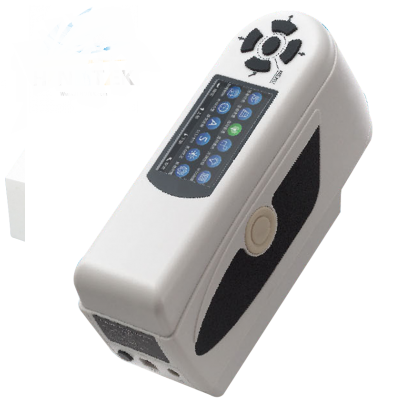

HINOTEK WSC-2B 便携式色度计

Display Mode: CIEL*a*b*C*H*;CIEL*a*b

Color Difference Formula: △E*ab;△L*a*b; △E*C*h

Illuminating/Viewing geometry: 8/d(8°illumination angle/diffuse viewing)

Light source: LED blue light excitation

Detector: Silicon photoelectric diode

Measuring Aperture: Φ8mm

Measuring Conditions: Observer: CIE 10°standard observer; Illuminant: CIE standard illuminant D65

Measuring Range: L: 0 to 100

Repeatability: Standard deviation within △E*ab 0.08(Measurement conditions: Average of 30 measurements of standard white plate)

Storage: 100 pcs standard samples;20000 pcs test samples

Minimum Interval Between Measurement: Approx. 1 sec

Battery Life: More than 3000 times

Lamp Life: more than 1.6 million times in 5 years

Display: TFT true color 2.8inch at (16:9)

Interface: Model B: USB; RS-232: Baud rate 19200bps

Operating Temperature Range: -10 – 40℃(32 – 104℉)

Storage Temperature: -20 – 50℃(-4 – 122℉)

Humidity Range: Relative humidity 0 – 85% with no condensation

Weight: 500g

Dimensions: 205mmx 70mm x100mm

Size of the packing: 435mm 205mm 345mm

Standard Accessories: AC Adapter; Li-ion Battery; Operation Manual; Software CD; USB Cable; White Calibration Cover; Φ8mm Measuring Aperture Mini-printer; Printer Cable
