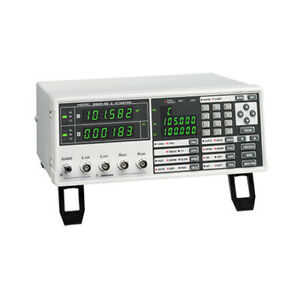

Hioki 3504-50 LCR 测试仪

  • 制造商: HIOKI
    Model: 3504-50
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




SPECIFICATIONS
- Measurement parameters: Cs, Cp (capacitance), D (loss coefficient tan δ)
- Measurement range: Cs, Cp (capacitance), D (loss coefficient tan δ)
- Basic accuracy:
  (typical value) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016
  Measurement accuracy = Basic accuracy × B × C × D × E, B to E is coefficient
- Source frequency: 120Hz, 1kHz
- Measurement signal level:
   100mV (3504-60 only), 500mV, 1V rms
   Measurement range CV 100mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
   Measurement range CV 500mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
   Measurement range CV 1V: up to 70μF range (Source frequency 1kHz), up to 700μF range (Source frequency 120Hz)
- Output resistance: 5Ω
- Display: LED (six digits, full scale count depends on measurement range)
- Measurement times: 2ms typical (1 kHz, FAST mode)
- Function:
   BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C (all models standard)
- Power supply: Selectable 100, 120, 220 or 240V AC ±10%, 50/60Hz, 110VA max.
- Dimensions, mass: 260mm(10.24in)W × 100mm(3.94in)H × 220mm(8.66in)D, 3.8kg(134.0oz)
- Supplied accessories: Power cord(1), Fuse(1)
- The warranty period: 12 month

Chi tiết
Measurement parameters Cs, Cp (capacitance), D (loss coefficient tan δ)
Measurement ranges C: 0.9400 pF to 20.0000 mF, D: 0.00001 to 1.99000
Basic accuracy (typical value) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016
Measurement accuracy = Basic accuracy × B × C × D × E, B to E is coefficient
Source frequency 120Hz, 1kHz
Measurement signal level 100mV (3504-60 only), 500mV, 1V rms
Measurement range CV 100mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
Measurement range CV 500mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
Measurement range CV 1V: up to 70μF range (Source frequency 1kHz), up to 700μF range (Source frequency 120Hz)
Output resistance 5Ω (In open terminal voltage mode outside of the CV measurement range)
Display LED (six digits, full scale count depends on measurement range)
Measurement times 2ms typical (1 kHz, FAST mode)
Actual measurement time depends on measurement configuration settings
Function 4-terminal contact check function (3504-60 only)
BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C (all models standard), GP-IB (3504-50, 3504-60)
Power consumption Selectable 100, 120, 220 or 240V AC ±10%, 50/60Hz, 110VA max.
Dimensions, mass 260mm(10.24in)W × 100mm(3.94in)H × 220mm(8.66in)D, 3.8kg(134.0oz)
Supplied accessories Power cord × 1, Spare fuse × 1
