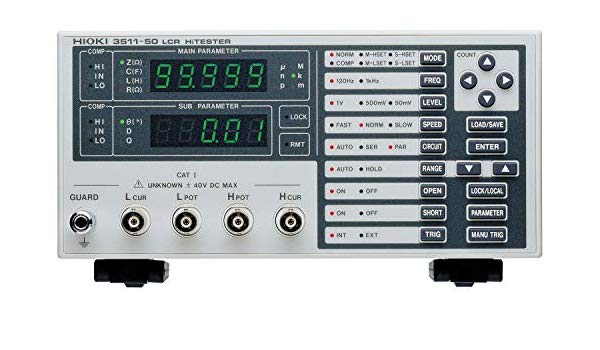

Hioki 3511-50 LCR 测试仪

SPECIFICATIONS
- Measurement parameters:|Z|, phase angle, C, L, D, Q, R
- Measurement method:
   Source: constant voltage 50 mV to 1 V rms (AC)
   Sense: voltage, AC
- Source frequency: 120 Hz or 1 kHz
- Measurement range:
   |Z|, R: 10 m-Ohm to 200.00 m-ohm (depending on condition), phase angle: -90.00 to +90.00 °, C: 0.940 pF to 999.99 mF, L: 1.600 µH to 200.00 kH, D: 0.0001 to 1.9900, Q: 0.85 to 999.99
- Displayable range:
    Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp :
    ± (0.000000 [unit] to 9.999999G [unit])
    Real value display for Z and Y only
    θ: ± (0.000° to 999.999°), D: ± (0.000000 to 9.999999)
    Q: ± (0.00 to 99999.99), Δ%: ± (0.0000% to 999.9999%)
- Basic accuracy: |Z|: ±0.08 % rdg. , phase angle: ±0.05 °
- Measurement time:
    Fast: 5 msec. to Slow: 300 msec. (at 1 kHz)
    Fast: 13 msec. to Slow: 400 msec. (at 120 Hz)
- Display: 99999 full digits, LED
- Function: Setting: Upper and lower limit, absolute value, Output: 3 levels (Hi, In, Lo), Open-collector, Isolated
- External printer: 9442 (use with the 9443-02 or -03/9444)
- Power supply: 100 to 240 V AC (selectable type), 50/60Hz
- Dimensions, mass: 210 mm(8.27 in)W × 100 mm(3.94 in)H × 168 mm(6.61 in)D, 2.5 kg (88.2 oz)
- Supplied accessories: Power cord(1), Fuse(1)
- The warranty period: 12 month

Details
Measurement parameters |Z|, phase angle, C, L, D, Q, R
Measurement method Source: constant voltage 50 mV to 1 V rms (AC)
Sense: voltage, AC
Source frequency 120 Hz or 1 kHz
Measurement ranges |Z|, R: 10 m-Ohm to 200.00 m-ohm (depending on condition), phase angle: -90.00 to +90.00 °, C: 0.940 pF to 999.99 mF, L: 1.600 µH to 200.00 kH, D: 0.0001 to 1.9900, Q: 0.85 to 999.99
Basic accuracy |Z|: ±0.08 % rdg. , phase angle: ±0.05 °
Measurement times Fast: 5 msec. to Slow: 300 msec. (at 1 kHz)
Fast: 13 msec. to Slow: 400 msec. (at 120 Hz)
Display 99999 full digits, LED
Comparator functions Setting: Upper and lower limit, absolute value, Output: 3 levels (Hi, In, Lo), Open-collector, Isolated
External printer 9442 (use with the 9443-02 or -03/9444)
Power supply 100 to 240 V AC (selectable type), 50/60Hz
Dimensions, mass 210 mm(8.27 in)W × 100 mm(3.94 in)H × 168 mm(6.61 in)D, 2.5 kg (88.2 oz)
Accessories Power cord(1), Fuse(1)

Catalog

pdficon 3511-50
product catalog.pdf (324 KB) (2008-01-30 updated)

pdficon LCR METER Series
product catalog.pdf (2.23 MB) (2013-01-23 updated)
