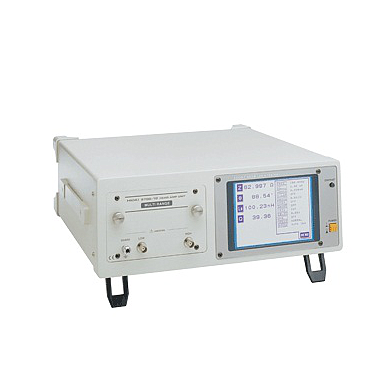

Hioki 3535 LCR测试仪

  • 制造商: HIOKI
    Model: 3535
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




SPECIFICTIONS
- Measurement Items: |Z|, |Y|, Q, Rp, Rs(ESR), G, X, B, Θ, Ls, Lp, Cs, Cp, D(tan δ)
- Measurement ranges:
           Z, R       100mΩ to 2kΩ     1kΩ to 20kΩ           10kΩ to300kΩ
           C           0.66pF to 15.9µF     0.066pF to 1.59nF     4.4fF to 159pF
           L           0.133nH to 3.18mH 1.33µH to 31.8mH      13.3µH to 477mH
           Θ                          -180.00° to 180.00°
- Measurement frequency: 100 kHz to 120 MHz
- Basic accuracy:|Z|: ±0.5 % rdg. , phase angle: ±0.
- Output impedance: 50 ±10 ohm (at 100 kHz)
- Measurement signal level:
    + 5 mV to 1 V, 20 mA max. ( up to 10.00 MHz )
    + 5 mV to 500 mV, 10 mA max. ( above 10.01 MHz )
    + Setting Resolution: 1mV steps
    + 200 µA to 20 mA: 1 V max. ( up to 10.00 MHz )
    + 200 µA to 10 mA: 0.5 V max. (above 10.01 MHz)
    + Setting Resolution: 10 µA steps steps
- Measurement Time: 6 ± 1 ms (nominal)
- Functions:
   Monitor Function, Limit Function, Average Trigger Function
   Load Compensation Function, Key Lock Function, Comparator,
   Classification ( BIN ) Measurement, Correlation,
   Compensation Function, Panel Save and Load, Measurement Value Storage
   Zoom Display Function, Continuous Measurements, Audible Beeper
   Numerical Display, Digit Setting Function, Display Setting Functions, Printer Function
- Interface: GP-IB, RS-232C and EXT I/O ( standard )
- Power supply: 100 to 240 VAC, 50/60 Hz, 50 VA
- Dimensions, mass: Approx. 360W×130H×360D mm, 8.3 kg
- Supplied accessories:    Power cord
- The warranty period: 12 month

Chi tiết
Measurement Items |Z|, |Y|, Q, Rp, Rs(ESR), G, X, B, Θ, Ls, Lp, Cs, Cp, D(tan δ)
Measurement ranges
  1kΩ range 10kΩ range 100kΩ range
Z, R 100mΩ to 2kΩ 1kΩ to 20kΩ 10kΩ to300kΩ
C 0.66pF to 15.9µF 0.066pF to 1.59nF 4.4fF to 159pF
L 0.133nH to 3.18mH 1.33µH to 31.8mH 13.3µH to 477mH
Θ -180.00° to 180.00°
Measurement Frequency 100 kHz to 120 MHz ( 100Hz to 100kHz steps )
Basic accuracy |Z|: ±0.5 % rdg. , phase angle: ±0.3°
Output Impedance 50 ±10 ohm (at 100 kHz)
Measurement Signal Level 5 mV to 1 V, 20 mA max. ( up to 10.00 MHz )
5 mV to 500 mV, 10 mA max. ( above 10.01 MHz )
Setting Resolution: 1mV steps

200 µA to 20 mA: 1 V max. ( up to 10.00 MHz )
200 µA to 10 mA: 0.5 V max. (above 10.01 MHz)
Setting Resolution: 10 µA steps
Measurement Time 6 ± 1 ms (nominal)
Other function Monitor Function, Limit Function, Average Trigger Function, Load Compensation Function, Key Lock Function, Comparator, Classification ( BIN ) Measurement, Correlation, Compensation Function, Panel Save and Load, Measurement Value Storage, Zoom Display Function, Continuous Measurements, Audible Beeper, Numerical Display, Digit Setting Function, Display Setting Functions, Printer Function
Interfaces GP-IB, RS-232C and EXT I/O ( standard )
Power 100 to 240 VAC, 50/60 Hz, 50 VA
Dimensions and Mass Approx. 360W×130H×360D mm, 8.3 kg
Supplied accessories Power cord

Catalog

pdficon 3535
product catalog.pdf (1.2 MB) (2006-04-27 updated)
