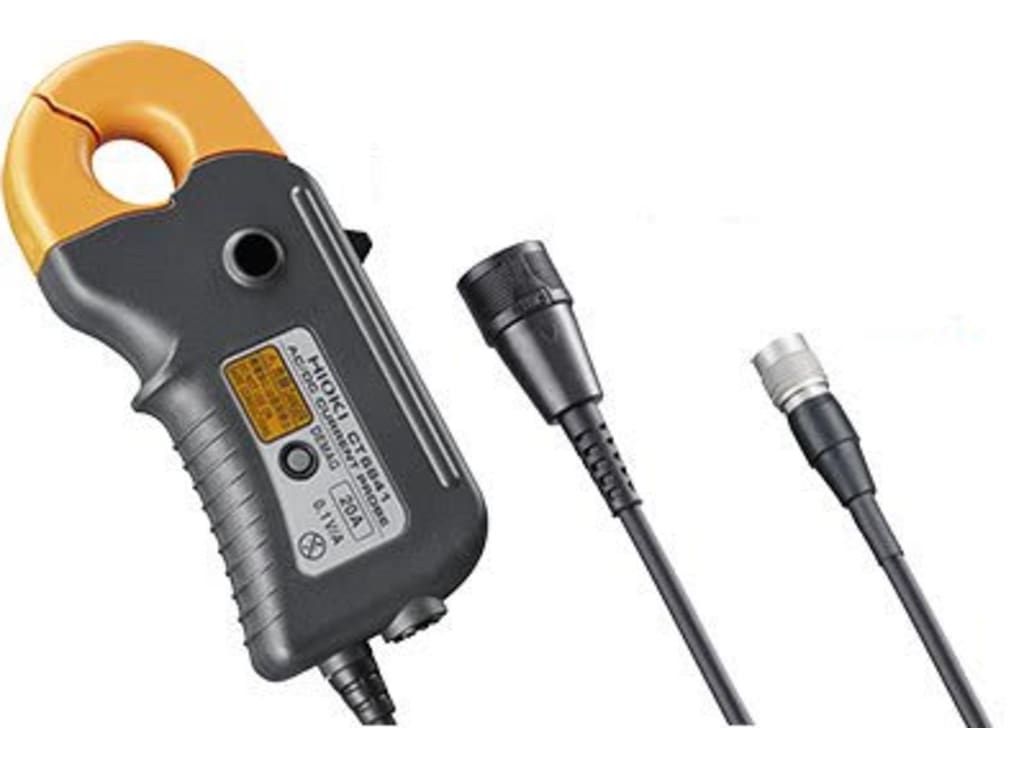

Hioki CT6841 AC/DC电流探头(20A)

  • 制造商: HIOKI
    Model: CT6841
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Rated current:    20 A AC/DC
- Max. allowable input:    40 A rms (requires derating)
- Frequency characteristics:    Amplitude: DC to 1 MHz
- Phase: DC to 300 kHz
- Amplitude and Phase accuracy:    DC ±0.3 % rdg. ±0.05 % f.s. (Phase: Not defined)
DC < f ≤ 100 Hz ±0.3 % rdg. ±0.01 % f.s. (Phase: ±0.1 deg)
Defined to 1 MHz
- Power consumption:     5 VA max. (at 20 A/55 Hz, ±12 V power requirement)
- Output voltage    : 0.1 V/A (CT6841), 0.01 V/A (CT6843) (voltage output with the Sensor Unit 9555-10, use with a device having a 1 MΩ input resistance or higher)
- Core diameter:    φ 20 mm (0.79 in)
- Operating temperature, humidity:    -40 °C to +85 °C (-40 °F to 185 °F), 80% rh or less (with no condensation)
- Power supply:    DC ±11 V to ±15 V (Power suppled via the 9555-10, 9555-10 supports 100 to 240 V AC)
- Dimensions and mass:    153 mm (6.02 in)W × 67 mm (2.64 in)H × 25 mm (0.98 in)D, cord length: 3 m (9.84 ft), 350 g (12.3 oz)
- Accessories:    Instruction manual ×1, Mark bands ×6, Carrying Case ×1

Details

catalog

- Rated current:    20 A AC/DC
- Max. allowable input:    40 A rms (requires derating)
- Frequency characteristics:    Amplitude: DC to 1 MHz
- Phase: DC to 300 kHz
- Amplitude and Phase accuracy:    DC ±0.3 % rdg. ±0.05 % f.s. (Phase: Not defined)
DC < f ≤ 100 Hz ±0.3 % rdg. ±0.01 % f.s. (Phase: ±0.1 deg)
Defined to 1 MHz
- Power consumption:     5 VA max. (at 20 A/55 Hz, ±12 V power requirement)
- Output voltage    : 0.1 V/A (CT6841), 0.01 V/A (CT6843) (voltage output with the Sensor Unit 9555-10, use with a device having a 1 MΩ input resistance or higher)
- Core diameter:    φ 20 mm (0.79 in)
- Operating temperature, humidity:    -40 °C to +85 °C (-40 °F to 185 °F), 80% rh or less (with no condensation)
- Power supply:    DC ±11 V to ±15 V (Power suppled via the 9555-10, 9555-10 supports 100 to 240 V AC)
- Dimensions and mass:    153 mm (6.02 in)W × 67 mm (2.64 in)H × 25 mm (0.98 in)D, cord length: 3 m (9.84 ft), 350 g (12.3 oz)
- Accessories:    Instruction manual ×1, Mark bands ×6, Carrying Case ×1
